Client Sessions

This report provides information about active and finished multicast sessions in a form similar to the Unicast sessions report. The difference lies in the set of displayed parameters that are more relevant for the analysis of multicast sessions.

Description of the table parameters:

Parameter	Description
Session quality	Average session quality ratio (%). Meaning of the session quality
Min session quality	Minimum session quality ratio (%). Meaning of the session quality
Mode	Session type: L — live TV stream; VOD — VoD content; STANDBY — the session is in the standby mode; OTHER — the subscriber device is authorized in the system, but the content has not been launched yet.
UID	Unique identifier of an end-user device within the SmartTUBE SDP
Reported IP	IP sent by the end-user device with the KEEP ALIVE event
Hardware ID	End-user device identifier used for internal API requests and other SmartLabs applications
Device type	Type of the end-user device. See How Device Type is Defined.
SAN	Service account identifier unique across the SmartTUBE platform
Start date	Session start time (on the subscriber device, UTC)
Duration	Session duration (s)
State	Current session status (Active or Finished)
Channel	Name and ID of the channel being viewed. Note: the channel name is requested by its ID in the corresponding SmartTUBE dictionary.
Content	Program or movie title
CPU count	Number of events on abnormal CPU usage of subscriber device during the session.
Mem count	Number of events on abnormal memory usage of subscriber device during the session.
Buffering events	Number of completed stream buffering events on the subscriber device.
App version	Version of the client app installed on the end-user device
Firmware version	Firmware version of the end-user device

Clicking on a row opens detailed information about selected session:

This screen includes several sections that allow you to understand what processes and events occurred on the end-user device during the multicast session:

Device info
Session info
Storage
Client events

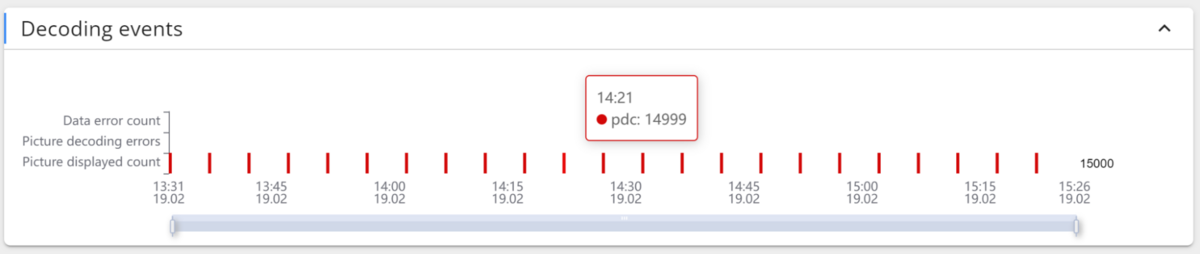

Decoding events
Session quality
Session counters

Device info

This panel provides general information about the end-user device:

Parameter	Description
UID	Unique ID of the subscriber device (UID).
Hardware ID	End-user device identifier used for internal API requests and other SmartLabs applications
Device type	Type of the subscriber device, STB model.
SAN	Subscriber account ID on the SmartTUBE SDP platform at the moment of the last verified session.
Location	Location of the subscriber device in the operator network, determined at the moment of authorization.
App version	Client application version of the subscriber device in the last verified session.
Firmware version	Firmware version of the end-user device
Reported IP	IP sent by the end-user device with the KEEP ALIVE event
Quality	Average session quality ratio (%)
Session type	Type of the last verified session (unicast or multicast)
State	Current state of the last verified session (active or finished)
Channel	Name and/or identifier of the channel from which the viewing began in the last verified session. Note: The channel name is requested by its ID in the corresponding SmartTUBE SDP dictionary.
Client session ID (CSI)	Unique ID of the last verified session.

Verified session — a session with low quality and/or duration of more than a minute.

Unverified session — a session with good quality and duration less than a minute (the subscriber switched to the channel, but did not watch it not because of quality problems, but in search of the desired content). Information on such a session is deleted from DB.

Session info

The Session info panel provides you with details on the session parameters:

Parameter	Description
Finish reason	Reason of the session termination: 1 — session change; 2 — session timeout.
Error	Description of the stream start error (code): 0: Stream Not Found 1: CAS: No Stream Keys 2: Codec Not Supported 3: Too Many Connections 4: Internal Server Error 5: Forbidden 6: Function Not Supported 7: Connection Timeout 8: Connection Terminated 9: Failed To Start 10: Invalid URL 11: Other errors
Join time	The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback, in msec.
App start time	Time taken to launch the app: If the app has already been logged in: from downloading data from the backend, to opening the app’s Home screen. If the app has not been logged in, the line displays two periods: 1. From downloading data from the backend to displaying the Authorization screen, 2. From pressing the Login button to opening the app’s Home screen.
Channel	Name and ID of the channel being viewed. Note: The channel name is requested by its ID in the corresponding SmartTUBE dictionary.
Content	Program title
Mem count	Number of events on abnormal memory usage of subscriber device during the session.
CPU count	Number of events on abnormal CPU usage of subscriber device during the session.
Buffering events	Number of completed stream buffering events on the device during the session
Session ID	Internal MongoDB document ID with session information (used for debugging)
Client session ID	ID of the current client session (CSI)
Next session ID	ID of the next client session (CSI)
Previous session ID	ID of the previous client session (CSI)
UID	Unique ID of the subscriber device (UID).
URL	URL of the channel playlist
Send Report	An indication that the user has sent a report during the session
UTC Offset	Time zone

Storage

This section provides information about total size and amount of free space for critical storage directories on the end-user device:

cache
data
persistent
sdcard
storage/emulated/0

This event is sent at intervals specified by parameter storageCheckInterval in the configuration file setup.json of SmartTUBE app.

Client events

The Graph tab of this panel allows you to analyze the client-side events during the session session. And the Table tab provide you with an extra info passed to the SmartCARE with each event.

The events are generated by the player integrated with the client app or by the app itself. Event data are passed to the SmartCARE via the SmartCARE API for End-User Devices and described below:

Start

Streaming enabling and start of streaming or error.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=SESSION_START	String	Event type	+	+	+	+	+
ste	String	Result of starting the stream / keep alive status: LS — multicast Live TV stream started; LE — multicast Live TV stream failed to start; VODS — VoD stream started; VODE — VoD stream failed to start. DVRS — unicast DVR stream (PauseLive, TSTV, nPVR) started; DVRE — unicast DVR stream (PauseLive, TSTV, nPVR) failed to start; DVRLS — unicast Live TV (DVR stream) started; DVRLE — unicast Live TV (DVR stream) failed to start.	+	+	+	+	+
error	String	Description of the stream start error (code): 0: Stream Not Found 1: CAS: No Stream Keys 2: Codec Not Supported 3: Too Many Connections 4: Internal Server Error 5: Forbidden 6: Function Not Supported 7: Connection Timeout 8: Connection Terminated 9: Failed To Start 10: Invalid URL 11: Other errors
dt	String	Device type	+	+	+	+	+
ver	String	Client application / firmware version	+	+	+	+	+
idc	String	Channel ID or content ID (movie name, local file name, YouTUBE content ID, etc.)	+	+	+	+	+
url	String	URL of the content playlist/manifest	+	+	+	+	+
idp	Integer	TV program ID (if the Live TV or DVR stream is played)	+	+	+	+	+
btr	Integer	Average bitrate calculated by the video PES packet	N/A	N/A	N/A	N/A	+
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.	+	+	+	+	+
dbr	Integer	Download bitrate	N/A	+	+	+	+
abr	Integer	Available bitrates	+	+	+	+	+
bdr	Integer	Buffer size (sec)	+	+	+	N/A	?
idpStart	Unixtime	Program start date (timestamp)	+	+	+	N/A	+
idpEnd	Unixtime	Program end date (timestamp)	+	+	+	N/A	+
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000	N/A	N/A	+	N/A	+
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate	–	–	–	–	–
bfu	Integer	Loading buffer occupancy (%)
cfg	String	Player configuration parameters	+

			Platform
			Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
mem	Integer	Memory usage at the time of session generation (%)	Chrome	+	N/A	+	iOS	Roadmap
cpu	Integer	CPU usage at the time of session generation (%)	N/A	+	N/A	+	N/A	Roadmap
wlan	Integer	Wi-Fi signal level at the time of session generation	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
rid	String	MAC address of the STB or UID of the Android device	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
ip	String	IP address of the client device	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
api	String	The version of the API used by the client application. Depending on the value, SmartCARE determines whether the session should be plotted on the graph based on client or server data.	+	+	+

Keep alive

Message on connection activity maintaining and stream playback status sent by the end-user device to the streaming server during stream playback (usually every 5 minutes). This event is sent at intervals specified by parameter keepAliveInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=KEEP_ALIVE	String	Event type	+	+	+	+	+	+
mem	Integer	Client device memory usage (%)	Chrome	+	N/A	+	N/A	Roadmap
cpu	Integer	Client device CPU usage (%)	N/A	+	N/A	+	N/A	Roadmap

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
ste	String	Result of starting the stream / keep alive status: LSA — multicast Live TV stream keep alive; DVRKA — unicast DVR stream (PauseLive, TSTV, nPVR) keep alive; VODKA — VoD stream keep alive.	+	+	+	+	+
btr	Integer	Average bitrate calculated by the video PES packet, in bit/sec.	N/A	N/A	N/A	N/A	+
bfu	Integer	Loading buffer occupancy (%). The ratio of the time of viewing the content by the subscriber to the time of its buffering.	+	+	+	N/A	Roadmap
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate, in bit/sec.	–	–	–	–	–
mnft	Double	Amount of time it took to download and parse the manifest, in seconds.	+	+	Roadmap	N/A	+
drmt	Double	Amount of time it took to download the first DRM key, in seconds.	+	N/A	Roadmap	N/A	+
msd	Double	Presentation’s max segment duration, in seconds.	+	+	N/A	N/A	+
ll	Double	Time between the frame display on the screen and its output to the air by the head-end, in seconds.	+	+	N/A	N/A	Roadmap
ebw	Integer	Current estimated network bandwidth, in bit/sec.	+	+	+	N/A	+
lct	Double	Time spent on license requests during this session, in seconds.	+	N/A	Roadmap	N/A	+
ldl	Double	Time it took for the video element to have enough data to begin playback, in seconds. This is measured from the time the player’s load() function is called to the time the ‘loadeddata’ event is fired by the media element.	+	+	N/A	N/A	+
bft	Double	Total time spent in a buffering state, in seconds.	+	+	+	N/A	+
pdc	Integer	Number of frames played	+	+	+	N/A	+
dec	Integer	Number of frames with errors	+ (non-zero value)	+	+	N/A	Roadmap
pdec	Integer	Number of frames with decoding errors	+ (non-zero value)	N/A	+	N/A	Roadmap
ufc	Integer	Number of loading buffer underrun events (client application STVID_DATA_UNDERFLOW_EVT event)	+	+	+	N/A	+
pgmajfault	Integer	Number of memory page access errors. Note: this parameter is also sent by the device along with the VIRTUAL_MEMORY event (with the values parameter).	N/A	N/A	N/A	N/A	Roadmap
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000.	N/A	N/A	+	N/A	+
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.
dbr	Integer	Downloading bitrate, in bit/sec.
abr	Array of integers	Available bitrates, in bit/sec.
bdr	Integer	Buffer duration, in bit/sec.

Join time

The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=JOIN_TIME	String	Event type	+	+	+	+	+
values	Integer	The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback, in ms.	+	+	+	+	+
Parameters that directly affect the start time of the stream
mnft	Double	Amount of time it took to download and parse the manifest, in seconds.	+	+	+	Roadmap	N/A
drmt	Double	Amount of time it took to download the first DRM key, in seconds.	+	N/A	Roadmap	N/A	+
lct	Double	Time spent on license requests during this session, in seconds.	+	N/A	Roadmap	N/A	+
ldl	Double	Time it took for the video element to have enough data to begin playback, in seconds. This is measured from the time the player’s load() function is called to the time the ‘loadeddata’ event is fired by the media element.	+	+	N/A	N/A	+
Reference parameters
dt	String	Device type	+	+	+	+	+
bfu	Integer	Loading buffer occupancy (%). The ratio of the time of viewing the content by the subscriber to the time of its buffering. For the JOIN_TIME event, this parameter should be equal to 100%, since playback has not started yet.	+	+	+	N/A	Roadmap
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate, in bit/sec.	–	–	–	–	–
msd	Double	Presentation’s max segment duration: The duration of the longest segment described in the first loaded MPEG-DASH playlist at the moment of session start.	+	+	N/A	N/A	+
ll	Double	Time between the frame display on the screen and its output to the air by the head-end, in seconds.	+	+	N/A	N/A	Roadmap
bft	Double	Total time spent in a buffering state, in seconds.	+	+	+	N/A	+
ebw	Double	Current estimated network bandwidth, in bit/sec.	+	+	+	N/A	+
pdc	Integer	Number of frames played	+	+	+	N/A	+
pdec	Integer	Number of frames with decoding errors	+ (non-zero value)	+	+	N/A	Roadmap
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.
abr	Array of integers	Available bitrates, in bit/sec.
bdr	Integer	Buffer size, in sec.
btr	Integer	Average bitrate calculated by the video PES packet, in bit/sec.
dbr	Integer	Downloading bitrate, in bit/sec.
dec	Integer	Number of frames with errors	+ (non-zero value)	+	+	N/A	Roadmap
ufc	Integer	Number of loading buffer underrun events (client application STVID_DATA_UNDERFLOW_EVT event). For the JOIN_TIME event, this parameter should be equal to 1.	+	+	+	N/A	+
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000.
url	String	URL of the content playlist/manifest	+	+	+	+	+

App start time

The application startup (load) duration.

API Request Parameter	Description	Player
API Request Parameter	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=APP_START	Event type
values	Application startup (load) duration, in ms.

Buffering

For SmartTUBE apps for large-screen devices (JUNG-based apps) from version 8.2 onwards, this event has been replaced by the e=FREEZE event.

Starting or completion of stream buffering.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=BUF_UNDERRUNS	String	Event type
values	Integer	Duration of stream buffering, msec. A value of 0 indicates the start of buffering.

CPU usage

The abnormal surge of the end-user device’s CPU usage.

This event is sent at intervals specified by parameters cpuCheckInterval and cpuPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=CPU_LOAD	String	Event type
values	Integer	CPU usage value (%)

Memory usage

The abnormal surge of the subscriber device memory usage.

This event is sent at intervals specified by parameters memCheckInterval and memPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=MEMORY	String	Event type
values	Integer	Amount of RAM used (%)

Session end

Session termination with the beginning of a new one. This is not an event of the client application, as it is generated by the Collector by changing the csi. See the “Session Concept” section.

Standby

The session goes into standby mode. This mode is activated when there is no action from the STB remote control for a certain time, as well as when the STB is turned off using the “Standby” button.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=STANDBY	String	Event type
values	String	Standby mode. Allowable values: OFF — the device has switched to normal mode; ON — the device has switched to standby mode.

Program change

TV program change on the channel being viewed.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=PROGRAM_CHANGED	String	Event type	+	+	+	+	+
idc	Integer	Channel ID or content ID (movie name, local file name, YouTUBE content ID, etc.)	+	+	+	+	+
idp	Integer	TV program ID (if the Live TV or DVR stream is played)	+	+	+	+	+
idpStart	Unixtime	Program start date (timestamp)	+	+	+	N/A	+
idpEnd	Unixtime	Program end date (timestamp)	+	+	+	N/A	+

Bitrate change

Switching to a stream (variant) with a different bitrate.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=BITRATE_CHANGE	String	Event type
values	Integer	New bitrate of content viewing, bit/s

Wi-Fi strength

The abnormal surge of the Wi-Fi signal level on the subscriber device (only for STB with Wi-Fi module).

This event is sent at intervals specified by parameters wifiCheckInterval and wifiPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=WIFI_STRENGTH	String	Event type
values	Integer	Wi-Fi signal level change (%)

Internet lost

Internet connection loss. The connection is checked every minute by the ping [SmartTUBE server host address] command.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=INTERNET_LOST	String	Event type
values	Integer	Duration of the Internet connection absence, msec. The data is sent by the device after the connection on the current network interface appears.

Auth attempt

Attempt to authorize the end-user device on the SmartTUBE server. The event determined by the SmartTUBE End-User Device API request /authorize? to the SmartTUBE server when a device is switching on. An event counts for any result.

Features:

SmartTUBE v4. If an Internet connection is established, the authorization request is sent immediately; if not, after the connection is established.
SmartTUBE v5 and later. The following condition is added to the logic described above: authorization is performed by a token that has its own expiration period. When it ends (backend setting), the reauthorization is performed.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=AUTH	String	Event type	+	+	+	+	+
san	String	Service account ID on the SmartTUBE SDP platform	+	+	+	+	+
values	String	The result of the device authorization on the SmartTUBE server. Allowable values: SUCCESS, ERROR.	+	+	+	+	+
ver	String	Client application / firmware version	+	+	+	+	+
fver	String	Firmware version (for STB only)				N/A	+
locationId	Integer	ID of the client device location (region ID in the SmartTUBE DB)	+	+	+	+	+
dtId	Integer	ID of the device type (in the SmartTUBE DB)	+	+	+	+	+
reason	Integer	Authorization type. Allowable values: 0 – PRIMARY, request for device authorization at client application startup; 1 – EXPIRED, request for device authorization after the current authorization expires; 2 – ERROR, request for device authorization when the error screen is displayed; 3 – AUTHORIZE, request for device authorization on the login screen; 4 – BLOCKED, request for device authorization when an account is blocked (the request is sent by device to the SmartTUBE server to clarify the status of the account)
ip	string	IP address from which authorization was performed

Player events

Playback events (play, stop, pause or rewind).

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=PLAYER_STATUS	String	Event type	+	+	+	+	+
values	String	Type of signal to the client application player. Acceptable values: play, stop, pause, rewind.	+	+	+	+	+
date	Unixtime	Rewind start time.	+	+	+	+	+
diff	Integer	Rewind duration, in sec.	+	+	+	+	+
direction	String	Direction of playback. Acceptable values: fwd (forward), bwd (backward)	+	+	+	N/A	+

Virtual memory

Spike in the number of RAM page access errors (with 2-fold acceleration) for the period between checks (for 1 minute by default). When this event occurs, the device often slows down or freezes.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=VIRTUAL_MEMORY	String	Event type
values	Integer	Number of memory page access errors. Note: this parameter is also sent by the device along with the KEEP_ALIVE event (with the pgmajfault parameter).

Storage

Total size and amount of free space for critical storage directories:

cache
data
persistent
sdcard
storage/emulated/0

This event is sent at intervals specified by parameter storageCheckInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=STORAGE_STATS	String	Event type				+
cache.bytes_free	Integer	Free space available in the cache directory, in bytes.
cache.bytes_total	Integer	Total space of the cache directory, in bytes.
persistent.bytes_free	Integer	Free space available in the persistent directory, in bytes.
persistent.bytes_total	Integer	Total space of the persistent directory, in bytes.
sdcard.bytes_free	Integer	Free space available in the sdcard directory, in bytes.
sdcard.bytes_total	Integer	Total space of the sdcard directory, in bytes.
storage%2Femulated%2F0.bytes_free	Integer	Free space available in the storage/emulated/0 directory, in bytes.
storage%2Femulated%2F0	Integer	Total space of the storage/emulated/0 directory, in bytes.
data.bytes_free	Integer	Free space available in the data directory, in bytes.	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
data.bytes_total	Integer	Total space of the data directory, in bytes.	N/A	N/A	N/A	+	N/A	Roadmap

Threshold memory

The memory and CPU utilization exceeded one of the following thresholds on the STB:

Memory Normal Level (default threshold – 60%)
Memory Critical Level (default threshold – 75%)
Memory Blocker Level (default threshold – 80%)
CPU Critical Level (default threshold – 80%)

The default STB behavior when these thresholds are exceeded is as follows:

Memory Normal Level exceeded — the CPU monitoring timer or reboot timer resets to 60 and 5 seconds respectively.
Memory Critical Level exceeded — in standby mode, the reboot timer starts; in the other mode, the reboot timer starts when the STB goes into standby mode.
Memory Blocker Level exceeded — in standby mode, the STB reboots immediately; in other mode, the STB reboots immediately when the CPU utilization level exceeds CPU Critical Level.

This event is sent at intervals specified by parameter memThresholdCheckInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=MEMORY_THRESHOLD	String	Event type
values	String	The memory and CPU utilization exceeded one of the thresholds described above (for STBs only). Allowable values: NormalMemoryWatchdogThreshold — Memory Normal Level exceeded LowMemoryWatchdogThreshold — Memory Critical Level exceeded; OutOfMemoryWatchdogThreshold — Memory Blocker Level exceeded

Reboot

STB reboot at low free memory level and high CPU utilization:

Memory Critical Level (default threshold — 75%) exceeded — the STB reboots in the standby mode;
Memory Blocker Level (default threshold — 80%) exceeded — in standby mode, the STB reboots immediately; in other mode, the STB reboots immediately when the CPU utilization level exceeds CPU Critical Level (default threshold — 80%).

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=REBOOT	String	Event type
values	String	STB reboot at low free memory level and high CPU utilization, see description above. Allowable values: ByLowMemoryWatchdog — reboot when the Memory Critical Level is exceeded; ByOutOfMemoryWatchdog — reboot when the Memory Blocker Level is exceeded.

Run test

This event notifies about the execution of test scenarios on the end-user device. For more details, see here.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=RUN_TEST	String	Event type	+
value	String	Test execution state: start — start of the test; end — end of test.	+
name	String	Name of a file with the test script	+
testid	String	ID of the test execution. Represents the start or end time of the test, in ms. The ISO 8601 format with time zone is used (e.g. 20230711T154956.201%2B0300). IMPORTANT: testid must be passed with each event triggered by the test script.	+

Send report

The user sent the device log by pressing the Send Report button in the client application. Typically, it is located in the Home screen > Settings > System > Support > Support menu.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=SEND_REPORT	String	Event type
value	Integer	The reason the user sent the report, which he/she selected in the dialog box. Allowable values: 0 — problems with video 1 — problems with audio 2 — frequent buffering 3 — slow application performance 4 — other problems
valueString	String	The reason the user sent the report, which he/she selected in the dialog box. Allowable values: Video+quality Audio+quality Frequent+bufferization Slow+interface Other

Unknown

An unknown event for the Collector. It may occur when a new monitored event appears in the updated version of the client application and the corresponding processing in the current Collector version is not available.

Decoding events

This panel provides you with information related to errors of the video stream decoding. Data are sent with the KEEP ALIVE events:

Parameter	Description
Data error count	The number of frames with errors
Picture decoding errors	The number of frames with decoding errors
Pictures displayed count	The number of frames displayed

Session Quality

The Session Quality graph shows the change in session quality (Algorithm 3), percentage of lost frames, and injector buffer usage (video buffer usage after demuxing of source stream and before injection to the decoder) over time.

Session Counters

The Session Counters graph shows the change in number of lost frames and number of loading buffer underrun events over time.

Client Sessions

Device info

Session info

Storage

Client events

Start

Keep alive

Join time

App start time

Buffering

CPU usage

Memory usage

Session end

Standby

Program change

Bitrate change

Wi-Fi strength

Internet lost

Auth attempt

Player events

Virtual memory

Storage

Threshold memory

Reboot

Run test

Send report

Unknown

Decoding events

Session Quality

Session Counters

CONTENTS
