Device List

The Device info section provides you with a detailed information about a particular end-user device and its activity at the moment and in the past. The search is performed by UID or CSI (Client session ID).

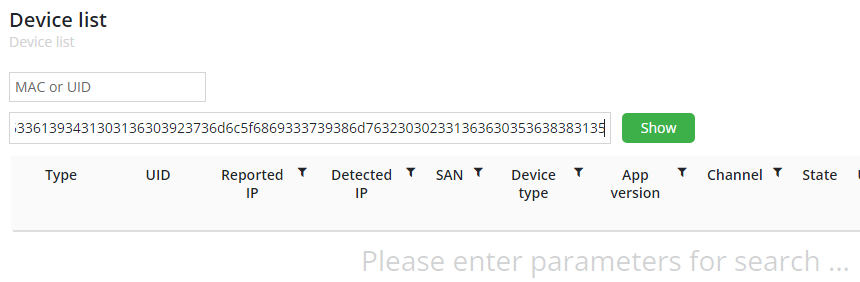

Search by UID

The UID, a unique device identifier, is generated in different ways depending on the type of a device:

Linux based STB — unique MAC address of the STB;
Android STB — unique serial number of the device;
Android mobile application — unique deviceID of the device;
iOS mobile application — unique UID automatically generated at the moment of the app installation/re-installation;
Smart TV — unique UID automatically generated at the moment of the app installation/re-installation;
Web application — unique UID automatically generated at the moment of the app installation/re-installation (stored in the web-browser cookie). If the cookie has been deleted, the UID will be regenerated.

Description of the table parameters:

Parameter	Description
Type
UID	Unique identifier of an end-user device within the SmartTUBE SDP
Reported IP	IP sent by the end-user device with the KEEP ALIVE event
Detected IP
SAN	Service account identifier unique across the SmartTUBE platform
Hardware ID	End-user device identifier used for internal API requests and other SmartLabs applications
Device type	Type of the end-user device. See How Device Type is Defined.
App version	Version of the client app installed on the end-user device
Firmware version	Firmware version of the end-user device
Channel	Name and ID of the channel being viewed. Note: the channel name is requested by its ID in the corresponding SmartTUBE dictionary.
State	Current session status (Active or Finished)
Uptime
Last mem
Last CPU
Last event time

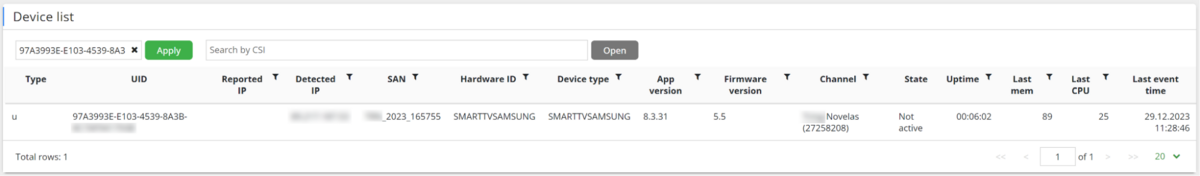

Clicking on a row opens detailed information about the device. Here you can see the following panels and graphs:

Device info
SmartTUBE SDP MW
External info
Storage
Channel viewing report (last 30 days)
Events and sessions
Client actions
Tests
Session JoinTime report

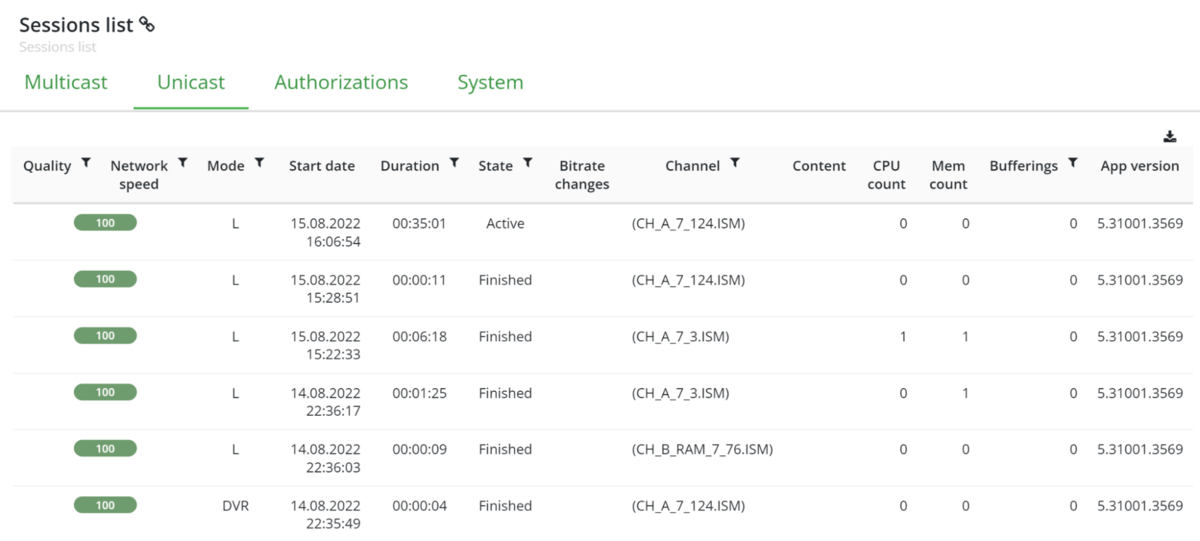

Sessions list
Device logs

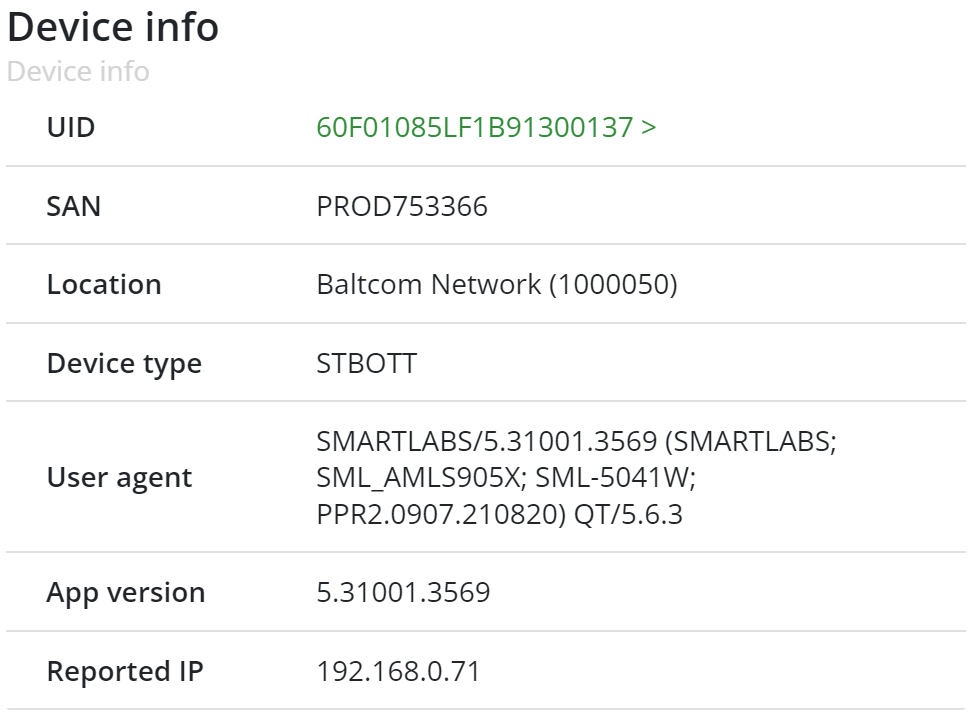

Device Info

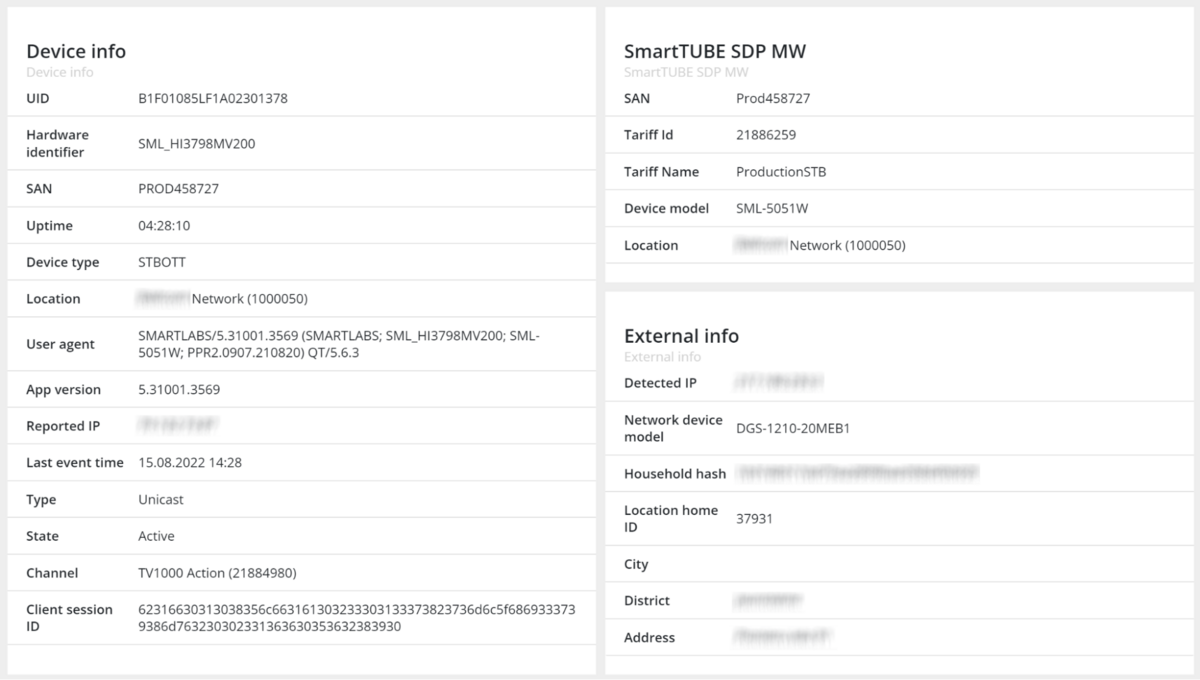

This area provides you with a general information about the end-user device.

Parameter	Description	Data source (collection.field)
UID	Unique ID of the subscriber device (UID).	Depending on the session type, two collections can be referenced: multicast: clUser.uid; unicast: ngUser.uid.
Device type	Type of the subscriber device, STB model.	clUser.dt
SAN	Subscriber account ID on the SmartTUBE SDP platform at the moment of the last verified session.	clUser.lastState.ch.san
Location	Location of the subscriber device in the operator network, determined at the moment of authorization.	clEvent.type = 12 → clEvent.data.locationId
User agent	Content of the User-agent header in the HTTP requests of the client application to the streaming server. Note: data is requested from the last stored unicast session.	ngSession.httpUserAgent
App version	Client application version of the subscriber device in the last verified session.	clUser.lastState.ch.ver
IP address	IP address of the subscriber device.	Depending on the session type, two collections can be referenced: multicast: clEvent.ip; unicast: ngUser.lastState.ch.ip.
Last event time	Time of the last event on the subscriber device in the verified session.	clUser.lastState.ch.eDate
Type	Type of the last verified session (unicast or multicast)	clSession.mode: L — multicast, DVR/VOD — unicast. If the session is stored in the ngSession collection, the session is unicast.
State	Current state of the last verified session (active or finished)	clUser.lastState.ch.active
Channel	Name and/or identifier of the channel from which the viewing began in the last verified session. Note: the channel name is requested by its ID in the corresponding SmartTube SDP dictionary.	clUser.lastState.ch.idc
Client session ID (CSI)	Unique ID of the last verified session.	clUser.lastState.ch.csi

Verified session — a session with low quality and/or duration of more than a minute.

Unverified session — a session with good quality and duration less than a minute (the subscriber switched to the channel, but did not watch it not because of quality problems, but in search of the desired content). Information on such a session in the clSession collection is deleted (to save space).

SmartTUBE SDP MW and External Info Areas

Parameter	Description	Data source (collection)
IP address	Subscriber IP address.	clUserAdd
Device model	Subscriber device model.	clUserAdd
Household hash	Subscriber ID on the OSS/BSS side.	clUserAdd
Location home ID	Unique building ID.	clUserAdd

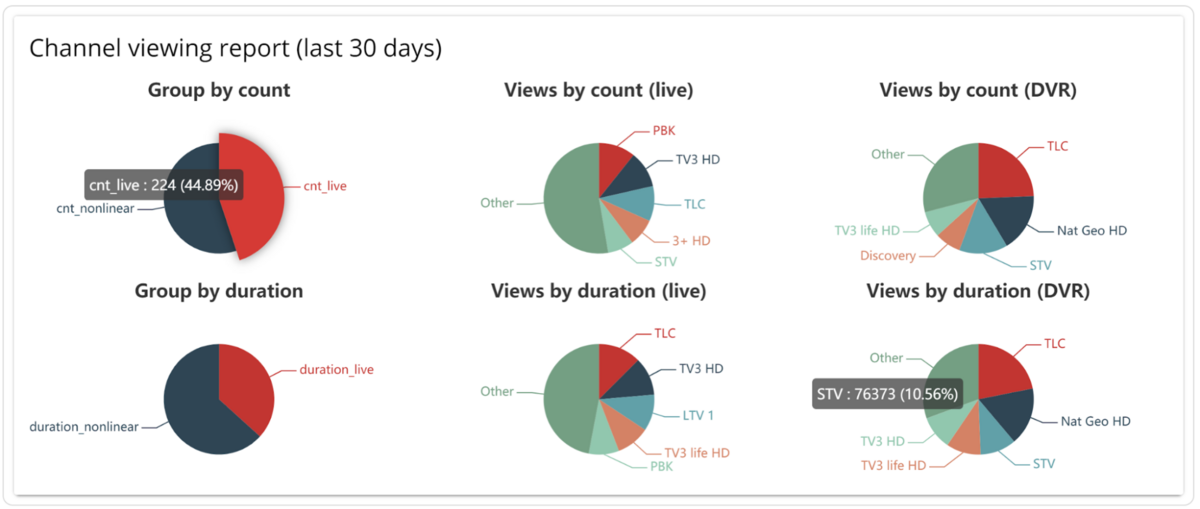

Channel Viewing Report Area

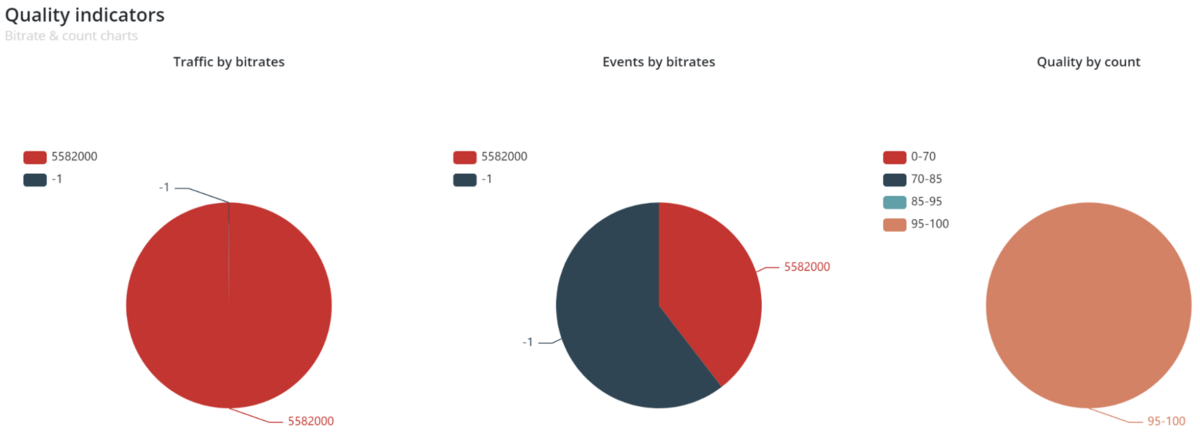

This area allows you to evaluate the popularity of viewing channels on the end-user device.

Parameter	Description
Group by count	Ratio of the channels views number on the subscriber device in the Live and DVR modes.
Views by count (live)	Ratio of the channel views number on the subscriber device in the Live mode.
Views by count (DVR)	Ratio of the channel views number on the subscriber device in the DVR mode.
Group by duration	Ratio of the channels viewing duration on the subscriber device in the Live and DVR mode.
Views by duration (live)	Ratio of the channels viewing duration on the subscriber device in the Live mode.
Views by duration (DVR)	Ratio of the channels viewing duration on the subscriber device in the DVR mode.

Events and Sessions Area

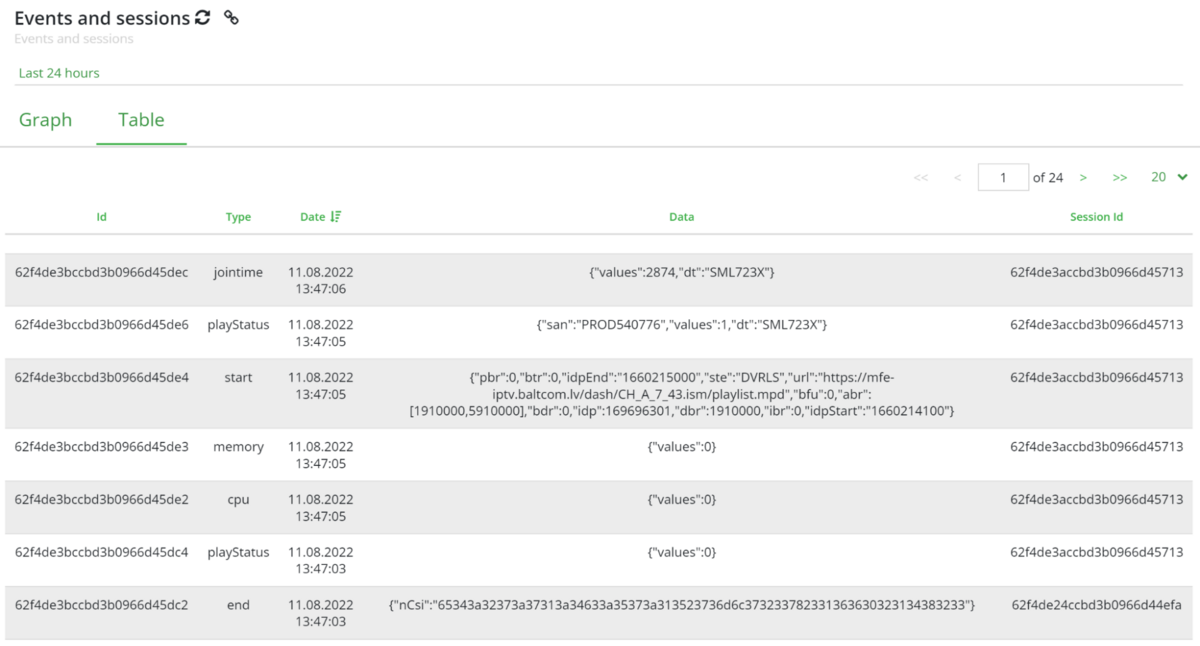

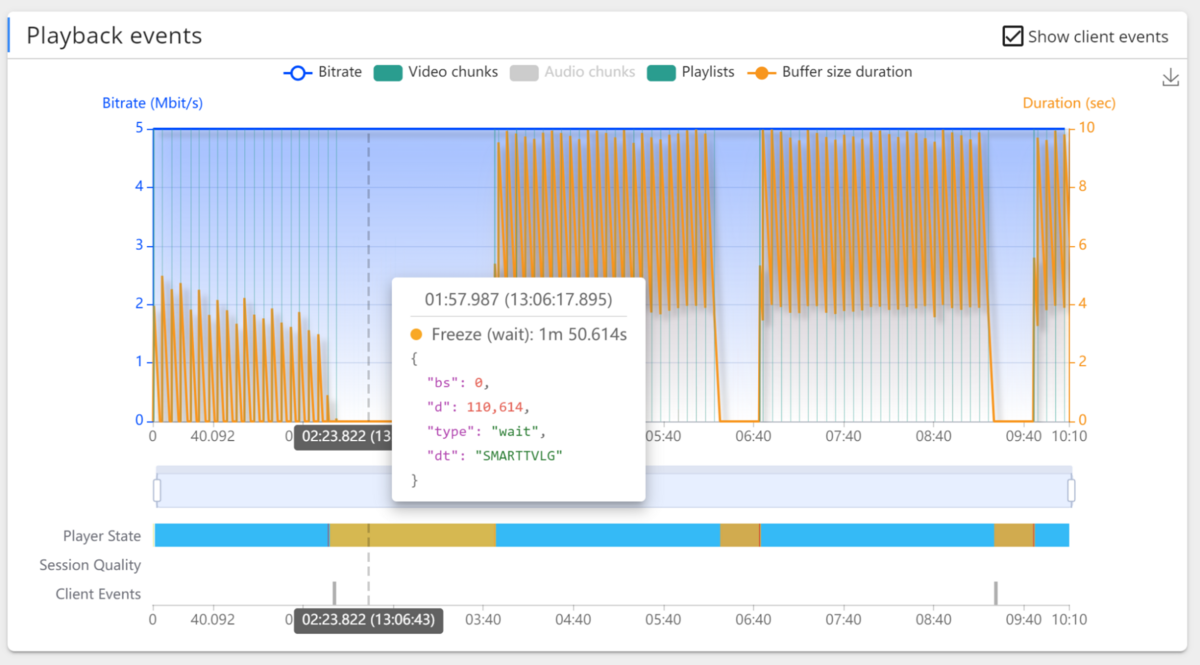

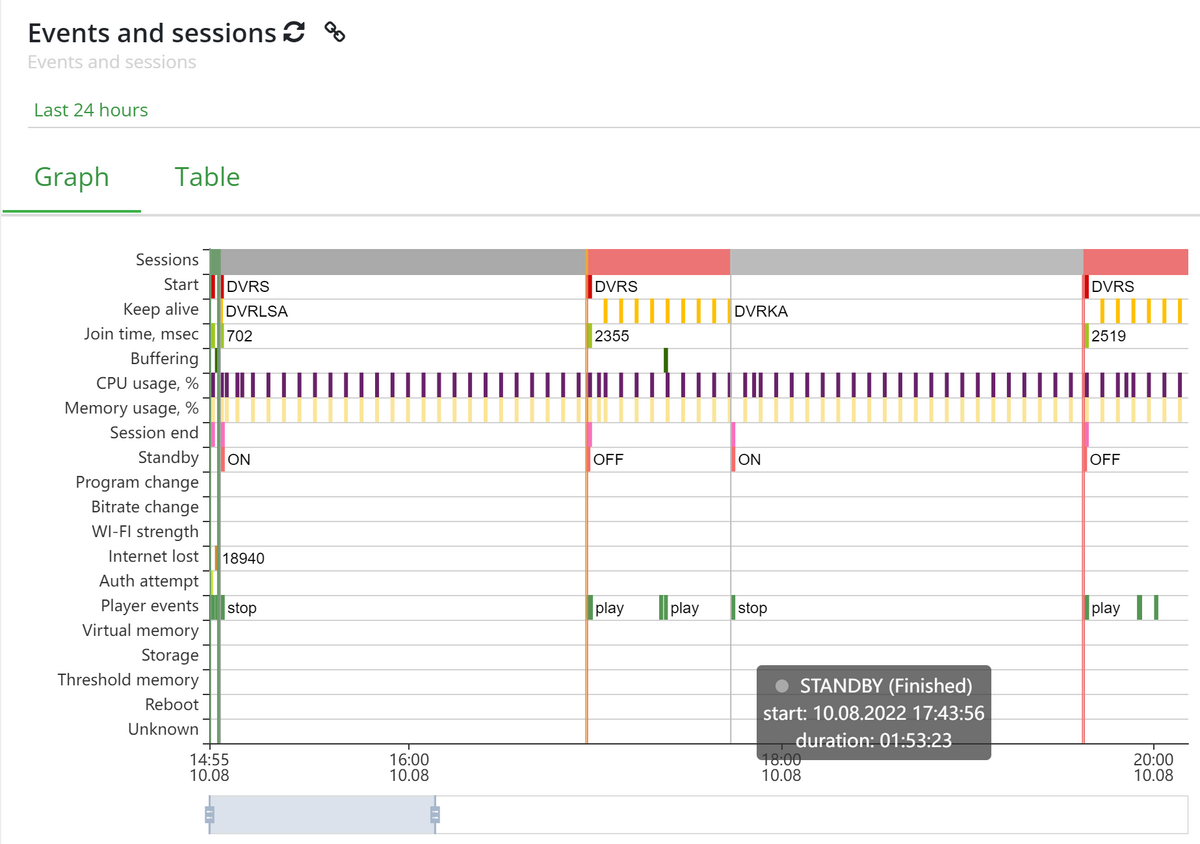

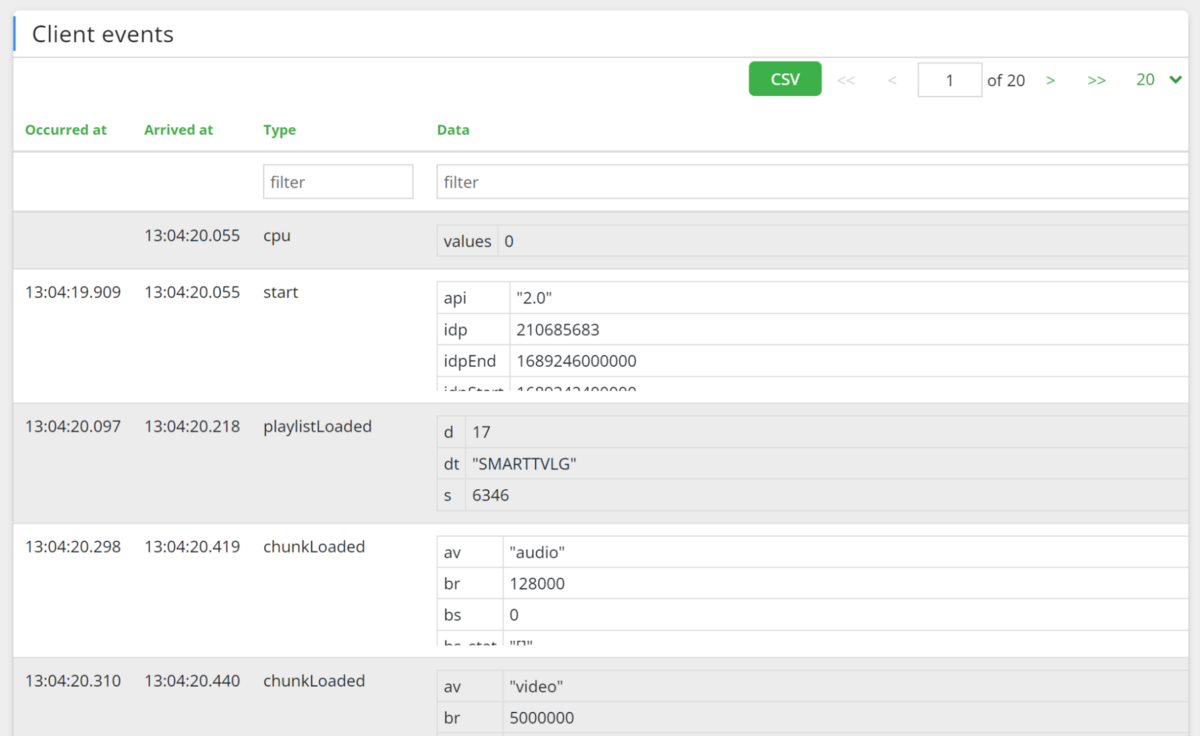

The Events and Sessions > Graph tab allows you to view client-side events with linkage to a session. And the Table tab can provide you with an extra info passed to the SmartCARE with each event.

The events are generated by the player integrated with the client app or by the app itself. Event data are passed to the SmartCARE via the SmartCARE API for End-User Devices.

Start

Streaming enabling and start of streaming or error.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=SESSION_START	String	Event type	+	+	+	+	+
ste	String	Result of starting the stream / keep alive status: LS — multicast Live TV stream started; LE — multicast Live TV stream failed to start; VODS — VoD stream started; VODE — VoD stream failed to start. DVRS — unicast DVR stream (PauseLive, TSTV, nPVR) started; DVRE — unicast DVR stream (PauseLive, TSTV, nPVR) failed to start; DVRLS — unicast Live TV (DVR stream) started; DVRLE — unicast Live TV (DVR stream) failed to start.	+	+	+	+	+
error	String	Description of the stream start error (code): 0: Stream Not Found 1: CAS: No Stream Keys 2: Codec Not Supported 3: Too Many Connections 4: Internal Server Error 5: Forbidden 6: Function Not Supported 7: Connection Timeout 8: Connection Terminated 9: Failed To Start 10: Invalid URL 11: Other errors
dt	String	Device type	+	+	+	+	+
ver	String	Client application / firmware version	+	+	+	+	+
idc	String	Channel ID or content ID (movie name, local file name, YouTUBE content ID, etc.)	+	+	+	+	+
url	String	URL of the content playlist/manifest	+	+	+	+	+
idp	Integer	TV program ID (if the Live TV or DVR stream is played)	+	+	+	+	+
btr	Integer	Average bitrate calculated by the video PES packet	N/A	N/A	N/A	N/A	+
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.	+	+	+	+	+
dbr	Integer	Download bitrate	N/A	+	+	+	+
abr	Integer	Available bitrates	+	+	+	+	+
bdr	Integer	Buffer size (sec)	+	+	+	N/A	?
idpStart	Unixtime	Program start date (timestamp)	+	+	+	N/A	+
idpEnd	Unixtime	Program end date (timestamp)	+	+	+	N/A	+
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000	N/A	N/A	+	N/A	+
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate	–	–	–	–	–
bfu	Integer	Loading buffer occupancy (%)
cfg	String	Player configuration parameters	+

			Platform
			Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
mem	Integer	Memory usage at the time of session generation (%)	Chrome	+	N/A	+	iOS	Roadmap
cpu	Integer	CPU usage at the time of session generation (%)	N/A	+	N/A	+	N/A	Roadmap
wlan	Integer	Wi-Fi signal level at the time of session generation	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
rid	String	MAC address of the STB or UID of the Android device	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
ip	String	IP address of the client device	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
api	String	The version of the API used by the client application. Depending on the value, SmartCARE determines whether the session should be plotted on the graph based on client or server data.	+	+	+

Keep alive

Message on connection activity maintaining and stream playback status sent by the end-user device to the streaming server during stream playback (usually every 5 minutes). This event is sent at intervals specified by parameter keepAliveInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=KEEP_ALIVE	String	Event type	+	+	+	+	+	+
mem	Integer	Client device memory usage (%)	Chrome	+	N/A	+	N/A	Roadmap
cpu	Integer	Client device CPU usage (%)	N/A	+	N/A	+	N/A	Roadmap

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
ste	String	Result of starting the stream / keep alive status: LSA — multicast Live TV stream keep alive; DVRKA — unicast DVR stream (PauseLive, TSTV, nPVR) keep alive; VODKA — VoD stream keep alive.	+	+	+	+	+
btr	Integer	Average bitrate calculated by the video PES packet, in bit/sec.	N/A	N/A	N/A	N/A	+
bfu	Integer	Loading buffer occupancy (%). The ratio of the time of viewing the content by the subscriber to the time of its buffering.	+	+	+	N/A	Roadmap
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate, in bit/sec.	–	–	–	–	–
mnft	Double	Amount of time it took to download and parse the manifest, in seconds.	+	+	Roadmap	N/A	+
drmt	Double	Amount of time it took to download the first DRM key, in seconds.	+	N/A	Roadmap	N/A	+
msd	Double	Presentation’s max segment duration, in seconds.	+	+	N/A	N/A	+
ll	Double	Time between the frame display on the screen and its output to the air by the head-end, in seconds.	+	+	N/A	N/A	Roadmap
ebw	Integer	Current estimated network bandwidth, in bit/sec.	+	+	+	N/A	+
lct	Double	Time spent on license requests during this session, in seconds.	+	N/A	Roadmap	N/A	+
ldl	Double	Time it took for the video element to have enough data to begin playback, in seconds. This is measured from the time the player’s load() function is called to the time the ‘loadeddata’ event is fired by the media element.	+	+	N/A	N/A	+
bft	Double	Total time spent in a buffering state, in seconds.	+	+	+	N/A	+
pdc	Integer	Number of frames played	+	+	+	N/A	+
dec	Integer	Number of frames with errors	+ (non-zero value)	+	+	N/A	Roadmap
pdec	Integer	Number of frames with decoding errors	+ (non-zero value)	N/A	+	N/A	Roadmap
ufc	Integer	Number of loading buffer underrun events (client application STVID_DATA_UNDERFLOW_EVT event)	+	+	+	N/A	+
pgmajfault	Integer	Number of memory page access errors. Note: this parameter is also sent by the device along with the VIRTUAL_MEMORY event (with the values parameter).	N/A	N/A	N/A	N/A	Roadmap
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000.	N/A	N/A	+	N/A	+
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.
dbr	Integer	Downloading bitrate, in bit/sec.
abr	Array of integers	Available bitrates, in bit/sec.
bdr	Integer	Buffer duration, in bit/sec.

Join time

The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=JOIN_TIME	String	Event type	+	+	+	+	+
values	Integer	The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback, in ms.	+	+	+	+	+
Parameters that directly affect the start time of the stream
mnft	Double	Amount of time it took to download and parse the manifest, in seconds.	+	+	+	Roadmap	N/A
drmt	Double	Amount of time it took to download the first DRM key, in seconds.	+	N/A	Roadmap	N/A	+
lct	Double	Time spent on license requests during this session, in seconds.	+	N/A	Roadmap	N/A	+
ldl	Double	Time it took for the video element to have enough data to begin playback, in seconds. This is measured from the time the player’s load() function is called to the time the ‘loadeddata’ event is fired by the media element.	+	+	N/A	N/A	+
Reference parameters
dt	String	Device type	+	+	+	+	+
bfu	Integer	Loading buffer occupancy (%). The ratio of the time of viewing the content by the subscriber to the time of its buffering. For the JOIN_TIME event, this parameter should be equal to 100%, since playback has not started yet.	+	+	+	N/A	Roadmap
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate, in bit/sec.	–	–	–	–	–
msd	Double	Presentation’s max segment duration: The duration of the longest segment described in the first loaded MPEG-DASH playlist at the moment of session start.	+	+	N/A	N/A	+
ll	Double	Time between the frame display on the screen and its output to the air by the head-end, in seconds.	+	+	N/A	N/A	Roadmap
bft	Double	Total time spent in a buffering state, in seconds.	+	+	+	N/A	+
ebw	Double	Current estimated network bandwidth, in bit/sec.	+	+	+	N/A	+
pdc	Integer	Number of frames played	+	+	+	N/A	+
pdec	Integer	Number of frames with decoding errors	+ (non-zero value)	+	+	N/A	Roadmap
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.
abr	Array of integers	Available bitrates, in bit/sec.
bdr	Integer	Buffer size, in sec.
btr	Integer	Average bitrate calculated by the video PES packet, in bit/sec.
dbr	Integer	Downloading bitrate, in bit/sec.
dec	Integer	Number of frames with errors	+ (non-zero value)	+	+	N/A	Roadmap
ufc	Integer	Number of loading buffer underrun events (client application STVID_DATA_UNDERFLOW_EVT event). For the JOIN_TIME event, this parameter should be equal to 1.	+	+	+	N/A	+
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000.
url	String	URL of the content playlist/manifest	+	+	+	+	+

App start time

The application startup (load) duration.

API Request Parameter	Description	Player
API Request Parameter	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=APP_START	Event type
values	Application startup (load) duration, in ms.

Buffering

For SmartTUBE apps for large-screen devices (JUNG-based apps) from version 8.2 onwards, this event has been replaced by the e=FREEZE event.

Starting or completion of stream buffering.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=BUF_UNDERRUNS	String	Event type
values	Integer	Duration of stream buffering, msec. A value of 0 indicates the start of buffering.

CPU usage

The abnormal surge of the end-user device’s CPU usage.

This event is sent at intervals specified by parameters cpuCheckInterval and cpuPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=CPU_LOAD	String	Event type
values	Integer	CPU usage value (%)

Memory usage

The abnormal surge of the subscriber device memory usage.

This event is sent at intervals specified by parameters memCheckInterval and memPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=MEMORY	String	Event type
values	Integer	Amount of RAM used (%)

Session end

Session termination with the beginning of a new one. This is not an event of the client application, as it is generated by the Collector by changing the csi. See the “Session Concept” section.

Standby

The session goes into standby mode. This mode is activated when there is no action from the STB remote control for a certain time, as well as when the STB is turned off using the “Standby” button.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=STANDBY	String	Event type
values	String	Standby mode. Allowable values: OFF — the device has switched to normal mode; ON — the device has switched to standby mode.

Program change

TV program change on the channel being viewed.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=PROGRAM_CHANGED	String	Event type	+	+	+	+	+
idc	Integer	Channel ID or content ID (movie name, local file name, YouTUBE content ID, etc.)	+	+	+	+	+
idp	Integer	TV program ID (if the Live TV or DVR stream is played)	+	+	+	+	+
idpStart	Unixtime	Program start date (timestamp)	+	+	+	N/A	+
idpEnd	Unixtime	Program end date (timestamp)	+	+	+	N/A	+

Bitrate change

Switching to a stream (variant) with a different bitrate.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=BITRATE_CHANGE	String	Event type
values	Integer	New bitrate of content viewing, bit/s

Wi-Fi strength

The abnormal surge of the Wi-Fi signal level on the subscriber device (only for STB with Wi-Fi module).

This event is sent at intervals specified by parameters wifiCheckInterval and wifiPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=WIFI_STRENGTH	String	Event type
values	Integer	Wi-Fi signal level change (%)

Internet lost

Internet connection loss. The connection is checked every minute by the ping [SmartTUBE server host address] command.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=INTERNET_LOST	String	Event type
values	Integer	Duration of the Internet connection absence, msec. The data is sent by the device after the connection on the current network interface appears.

Auth attempt

Attempt to authorize the end-user device on the SmartTUBE server. The event determined by the SmartTUBE End-User Device API request /authorize? to the SmartTUBE server when a device is switching on. An event counts for any result.

Features:

SmartTUBE v4. If an Internet connection is established, the authorization request is sent immediately; if not, after the connection is established.
SmartTUBE v5 and later. The following condition is added to the logic described above: authorization is performed by a token that has its own expiration period. When it ends (backend setting), the reauthorization is performed.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=AUTH	String	Event type	+	+	+	+	+
san	String	Service account ID on the SmartTUBE SDP platform	+	+	+	+	+
values	String	The result of the device authorization on the SmartTUBE server. Allowable values: SUCCESS, ERROR.	+	+	+	+	+
ver	String	Client application / firmware version	+	+	+	+	+
fver	String	Firmware version (for STB only)				N/A	+
locationId	Integer	ID of the client device location (region ID in the SmartTUBE DB)	+	+	+	+	+
dtId	Integer	ID of the device type (in the SmartTUBE DB)	+	+	+	+	+
reason	Integer	Authorization type. Allowable values: 0 – PRIMARY, request for device authorization at client application startup; 1 – EXPIRED, request for device authorization after the current authorization expires; 2 – ERROR, request for device authorization when the error screen is displayed; 3 – AUTHORIZE, request for device authorization on the login screen; 4 – BLOCKED, request for device authorization when an account is blocked (the request is sent by device to the SmartTUBE server to clarify the status of the account)
ip	string	IP address from which authorization was performed

Player events

Playback events (play, stop, pause or rewind).

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=PLAYER_STATUS	String	Event type	+	+	+	+	+
values	String	Type of signal to the client application player. Acceptable values: play, stop, pause, rewind.	+	+	+	+	+
date	Unixtime	Rewind start time.	+	+	+	+	+
diff	Integer	Rewind duration, in sec.	+	+	+	+	+
direction	String	Direction of playback. Acceptable values: fwd (forward), bwd (backward)	+	+	+	N/A	+

Virtual memory

Spike in the number of RAM page access errors (with 2-fold acceleration) for the period between checks (for 1 minute by default). When this event occurs, the device often slows down or freezes.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=VIRTUAL_MEMORY	String	Event type
values	Integer	Number of memory page access errors. Note: this parameter is also sent by the device along with the KEEP_ALIVE event (with the pgmajfault parameter).

Storage

Total size and amount of free space for critical storage directories:

cache
data
persistent
sdcard
storage/emulated/0

This event is sent at intervals specified by parameter storageCheckInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=STORAGE_STATS	String	Event type				+
cache.bytes_free	Integer	Free space available in the cache directory, in bytes.
cache.bytes_total	Integer	Total space of the cache directory, in bytes.
persistent.bytes_free	Integer	Free space available in the persistent directory, in bytes.
persistent.bytes_total	Integer	Total space of the persistent directory, in bytes.
sdcard.bytes_free	Integer	Free space available in the sdcard directory, in bytes.
sdcard.bytes_total	Integer	Total space of the sdcard directory, in bytes.
storage%2Femulated%2F0.bytes_free	Integer	Free space available in the storage/emulated/0 directory, in bytes.
storage%2Femulated%2F0	Integer	Total space of the storage/emulated/0 directory, in bytes.
data.bytes_free	Integer	Free space available in the data directory, in bytes.	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
data.bytes_total	Integer	Total space of the data directory, in bytes.	N/A	N/A	N/A	+	N/A	Roadmap

Threshold memory

The memory and CPU utilization exceeded one of the following thresholds on the STB:

Memory Normal Level (default threshold – 60%)
Memory Critical Level (default threshold – 75%)
Memory Blocker Level (default threshold – 80%)
CPU Critical Level (default threshold – 80%)

The default STB behavior when these thresholds are exceeded is as follows:

Memory Normal Level exceeded — the CPU monitoring timer or reboot timer resets to 60 and 5 seconds respectively.
Memory Critical Level exceeded — in standby mode, the reboot timer starts; in the other mode, the reboot timer starts when the STB goes into standby mode.
Memory Blocker Level exceeded — in standby mode, the STB reboots immediately; in other mode, the STB reboots immediately when the CPU utilization level exceeds CPU Critical Level.

This event is sent at intervals specified by parameter memThresholdCheckInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=MEMORY_THRESHOLD	String	Event type
values	String	The memory and CPU utilization exceeded one of the thresholds described above (for STBs only). Allowable values: NormalMemoryWatchdogThreshold — Memory Normal Level exceeded LowMemoryWatchdogThreshold — Memory Critical Level exceeded; OutOfMemoryWatchdogThreshold — Memory Blocker Level exceeded

Reboot

STB reboot at low free memory level and high CPU utilization:

Memory Critical Level (default threshold — 75%) exceeded — the STB reboots in the standby mode;
Memory Blocker Level (default threshold — 80%) exceeded — in standby mode, the STB reboots immediately; in other mode, the STB reboots immediately when the CPU utilization level exceeds CPU Critical Level (default threshold — 80%).

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=REBOOT	String	Event type
values	String	STB reboot at low free memory level and high CPU utilization, see description above. Allowable values: ByLowMemoryWatchdog — reboot when the Memory Critical Level is exceeded; ByOutOfMemoryWatchdog — reboot when the Memory Blocker Level is exceeded.

Run test

This event notifies about the execution of test scenarios on the end-user device. For more details, see here.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=RUN_TEST	String	Event type	+
value	String	Test execution state: start — start of the test; end — end of test.	+
name	String	Name of a file with the test script	+
testid	String	ID of the test execution. Represents the start or end time of the test, in ms. The ISO 8601 format with time zone is used (e.g. 20230711T154956.201%2B0300). IMPORTANT: testid must be passed with each event triggered by the test script.	+

Send report

The user sent the device log by pressing the Send Report button in the client application. Typically, it is located in the Home screen > Settings > System > Support > Support menu.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=SEND_REPORT	String	Event type
value	Integer	The reason the user sent the report, which he/she selected in the dialog box. Allowable values: 0 — problems with video 1 — problems with audio 2 — frequent buffering 3 — slow application performance 4 — other problems
valueString	String	The reason the user sent the report, which he/she selected in the dialog box. Allowable values: Video+quality Audio+quality Frequent+bufferization Slow+interface Other

Unknown

An unknown event for the Collector. It may occur when a new monitored event appears in the updated version of the client application and the corresponding processing in the current Collector version is not available.

Sessions

Graphical display of beginning and end of client sessions with basic information: session type, quality, start time, duration, and channel name.

Client Actions Area

This area allows you to track subscriber actions in the SmartTUBE app for large-screen devices (JUNG). To enable tracking, set the Save user actions checkbox.

Key press

Button presses on the remote control / keyboard.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=USER_ACTION_KEYPRESS	String	Event type	+	+	+	+
date	Unixtime	Event datetime	+	+	+	+	N/A	Roadmap
values	String	Button / key code

Page

Tracking user navigation through menu sections in the app’s UI.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=USER_ACTION_PAGE	String	Event type	+	+	+	+	+
values	String	Menu item path. For example: /main/tv/epg/player	+	+	+	+	+
date	Unixtime	Event occurrence time	+	+	+	+	+

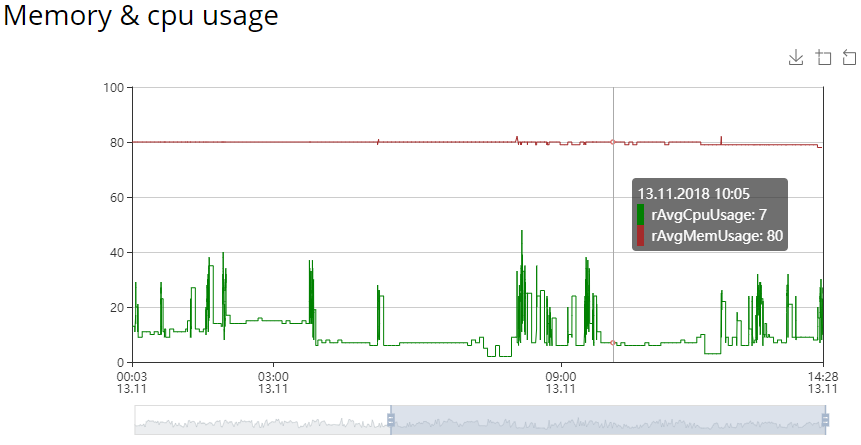

Memory & CPU Usage Area

Here you can see the diagram of CPU and memory usage of the end-user device.

Parameter	Description	Data source (collection.field)
Realtime average CPU usage, %	Average CPU usage of a subscriber device in a minute, %. Only for STB.	clSession.acu
Realtime average memory usage, %	Average memory usage of a subscriber device in a minute, %. Only for STB.	clSession.amu

Algorithm for generating messages on the abnormal CPU and memory usage:

Every 5 minutes, the client application measures the end-user device resources usage and stores the result in its memory.
If there are changes in comparison with the previous result with exceeding the set thresholds — 20% for CPU and 10% for memory, the subscriber device generates a message for SmartCARE.

Sessions List Area

This area provides the following reports:

Multicast — information about active and finished multicast sessions. See the description of this report here;
Unicast — information about active and finished multicast sessions. See the description of this report here;
Authorizations — information about successful and failed authorizations;
System — information about sessions during which the content was not played.

Search by CSI

CSI is a unique identifier of the client session generated by the end-user device and passed to the SmartCARE with API calls. It represents a string containing the UID, device type and time on the device, separated by the “#” character and converted to hex.

A new CSI is generated under the following conditions:

Start of New Content Unit: When a new content unit (a channel or movie) begins playback.
Completion of Rewind: Following the user’s completion of rewinding.
Resume after Pause: When playback is resumed after a pause.
Initiation of New Program: When a user initiates the playback of a new program.
Playback Position Change: If the user selects to play a program from a different position, utilizing options “Play from the Beginning” or “Play from Saved Position” when switching on a live stream.
Playback Resumption from Standby: When playback is reactivated after the system has been in standby mode.

Please note that if playback stops and subsequently resumes for any reason, this is not classified as a new session, and a new CSI will not be generated in such instances.

Search by the client session ID (CSI)

Entering the CSI and pressing the Show button displays a page with detailed information on the client session, which includes areas described below.

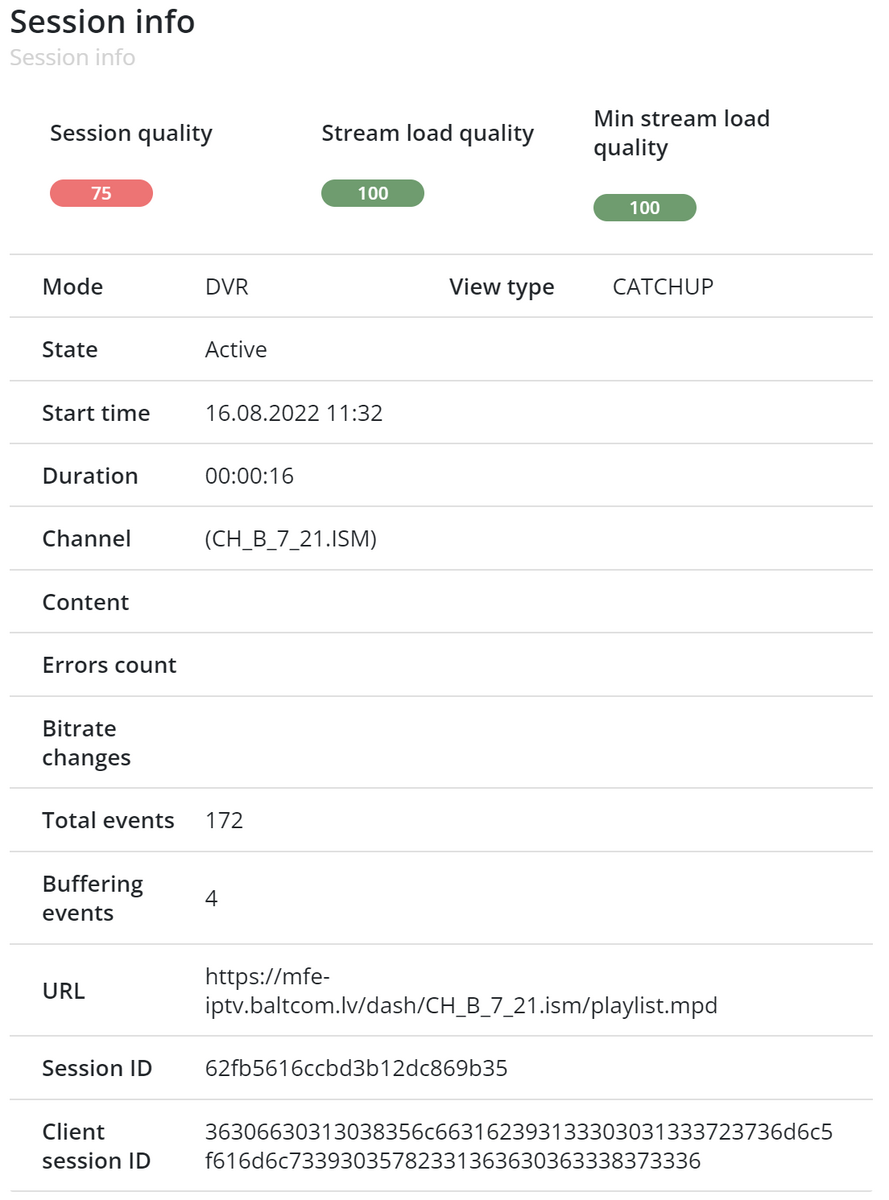

Session Overview Area

This area provides a basic information about the client session.

Clicking on the Down button opens areas with detailed information about the client session.

Session Info Area

Parameter	Description	Data source (collection.field)
UID	Unique ID of the subscriber device (UID).	Depending on the session type, two collections can be referenced: multicast: clUser.uid; unicast: ngUser.uid.
SAN	Subscriber account ID on the SmartTUBE SDP platform at the moment of the last verified session.	clSession.san
Location	Name and ID of the subscriber device location in the operator network, determined at the moment of authorization. The name is requested from the corresponding SmartTUBE SDP dictionary.	clEvent.type = 12 → clEvent.data.locationId
User agent	Content of the User-agent string in the HTTP requests of the client application to the streaming server. Note: data is requested from the last stored unicast session.	ngUser.lastState.ch.httpUserAgent
App version	Client application version of the subscriber device (STB) in the last verified session.	ngUser.lastState.ch.httpUserAgent
IP address	IP address of the subscriber device.	ngUser.lastState.ch.ip
Quality	Session quality calculated by Algorithm 3 (average and minimum).	clSession.quality.info.qualityByFrame and minQ, respectively
Mode	Content type: L — live TV stream; DVR — recorded TV stream; VOD — VoD content, “Video on Demand” STANDBY — the session is in the standby mode; UNKNOWN — the subscriber device is authorized in the system, but the content viewing has not been started yet.	Depending on the session type, two collections can be referenced: multicast: clSession.mode; unicast: ngSession.mode.
State	Current session status (Active or Finished).	Depending on the session type, two collections can be referenced: multicast: clSession.active; unicast: ngSession.active.
Start time	Session start time (on the subscriber device, UTC).	Depending on the session type, two collections can be referenced: multicast: clSession.start; unicast: ngSession.start.
Duration	Session duration (s).	Depending on the session type, two collections can be referenced: multicast: clSession.duration; unicast: ngSession.duration.
Channel	Name and ID of the channel being viewed. Note: the channel name is requested by its ID in the corresponding SmartTUBE dictionary.	Depending on the session type, two collections can be referenced: multicast: clSession.idc; unicast: ngSession.channel.
Errors count	Number of meta- and media-data transmission errors (httpStatus < 200 or >= 400).	ngSession.error
Bitrate changes	Number of bitrate switches (up or down) during the session.	Depending on the session type, two collections can be referenced: multicast: determined by the number of events clEvent.type == 3 during the session; unicast: ngSession.bitrateChange.
Total events	Total number of events on the subscriber device for a unicast session.	ngSession.error
Buffering events	Number of completed stream buffering events on the subscriber device during the session.	Determined by the number of events clEvent.type == 5 during the session.
Session ID	MongoDB document ID with session information (used for debugging).	Depending on the session type, two collections can be referenced: multicast: clSession._id unicast: ngSession._id
Client session ID (CSI)	Client session ID.	Depending on the session type, two collections can be referenced: multicast: clSession.csi unicast: ngSession.csi

Quality Indicators Area

These indicators show the ratio of the received data volume and the number of events on the subscriber device by bitrate.

Parameter	Description	Data source (collection.field)
Numbers around circles	Stream bitrate value (byte/s) — specified in the corresponding SmartTUBE SDP dictionary. The value “-1” indicates the impossibility of determining the bitrate (it was not possible to extract the bitrate value from the URL of the content request came to Collector from the streaming server).	ngSession.stat.bytesSentByBitrate.<bitrate value> If only one bitrate is used in the system, it can be specified in the Collector-nginx component configuration file by the collector-nginx.services.nginx.bitrate parameter.
Traffic grouped by bitrates	The ratio of the data amount received by the subscriber device at different bitrates.	ngSession.stat.bytesSentByBitrate
Events by bitrates	The ratio of the number of events generated by the subscriber device at different bitrates.	ngSession.stat.countByBitrate

Device Info Area

This area provides general information about the end-user device. See the parameter description here.

Playback Events Area

This area shows events related to the content playback during the selected session.

Exploring the graph and bars under it you can see an additional statistic parameters came with the following events:

Freeze

This event allows you to distinguish between three states in which streaming delay or image freezing occur:

Pre-buffering — buffering before starting a channel or movie;
Waiting for data by the HTMLMediaElement
Buffer underrun — the moment the buffer is zeroed, i.e. there is no content left in the buffer.

API parameter	Type	Description	Player
API parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=FREEZE	string	Event type
type	string	State in which streaming delay or image freezing occured: pre — buffering before starting a channel or movie; wait — waiting for data by the HTML MediaElement buffer — the moment the buffer is zeroed, i.e. there is no content left in the buffer.
d	Integer	Duration of a freeze, in ms.
bs	Integer	Buffer size at the moment of event occurrence, in ms.

Playlist Loaded

An event that reports the completion of a playlist load.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=PLAYLIST_LOADED	String	Event type	+		+	+
d	Integer	Playlist loading duration, ms.	+
s	Integer	Playlist size, bytes.	+
url	String	Playlist URL (optional). The value is passed if only the sendPlaylistUrl flag is set to true in the configuration file setup.json of the SmartTUBE app.	+

Chunk Loaded

An event that reports the completion of a chunk load.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=CHUNK_LOADED	String	Event type	+	+	+
d	Integer	Chunk loading duration, ms.	+	+	+
s	Integer	Chunk size, bytes.	+	+	+
bs	Integer	Buffer size at the moment of chunk loading started, ms.	+	+	+
br	Integer	Chunk bitrate, bit/s (optional). The value is taken from the playlist.	+	+	+
av	String	Chunk type: audio, video, sub, other.	+	+	+
ebr	Integer	Current estimated network bandwidth, bit/s.	+	+	+
url	String	Chunk URL (optional). The value is passed if only the sendChunkUrl flag is set to true in the configuration file setup.json of the SmartTUBE app.	+	+	+
bs_stat	Array	Buffer statistics for av=video, in a format: [ { ts: <event occurrence timestamp (UTC without TZ)>, bs: <Buffer size, in msec> }, { ts: .., bs: .. }, … ]	+	+	+

Player Events
