Session Monitoring

Unicast Sessions

This report displays information about active and finished unicast sessions. Filtering and sorting the parameters of this table allows you to quickly find the sessions during which problems were observed.

Description of the table parameters:

Parameter	Description
Quality	Average session quality ratio (%). What could the session quality mean?
Network speed	Chunk loading speed. Values <100 mean that chunks take longer to load than to play.
Mode	Content type: L — live stream; DVR — recorded TV stream; VOD — VoD content, “Video on Demand”.
UID	Unique identifier of an end-user device within the SmartTUBE SDP
Reported IP	IP sent by the end-user device with the KEEP ALIVE event
Detected IP	IP of the end-user device sent by the streaming server
Hardware ID	End-user device identifier used for internal API requests and other SmartLabs applications
Device type	Type of the end-user device. See How Device Type is Defined.
SAN	Service account identifier unique across the SmartTUBE platform
Start date	Session start time (on the subscriber device, UTC).
Duration	Session duration (s).
Join time	The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback
State	Current session status (Active or Finished).
Bitrate changes	Number of bitrate switches (up or down) during the session.
Channel	ID of the channel being viewed, received from the streaming server.
Content	Program or movie title
CPU count	Number of events on abnormal CPU usage of subscriber device during the session.
Mem count	Number of events on abnormal memory usage of subscriber device during the session.
Bufferings	Number of completed stream buffering events on the subscriber device during the session.
App version	Version of the client app installed on the end-user device
Firmware version	Firmware version of the end-user device

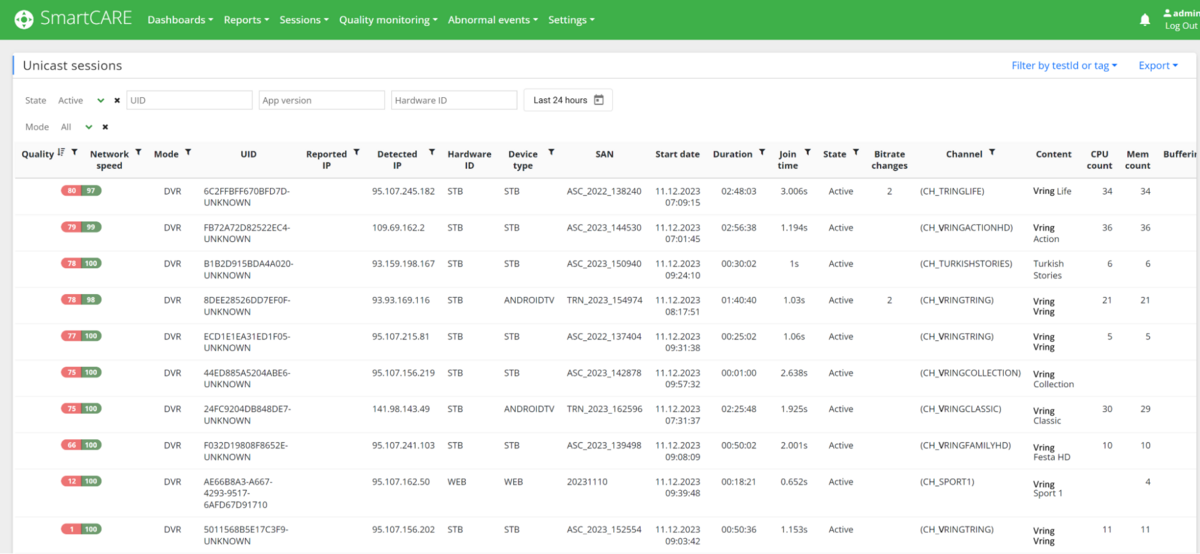

Clicking on a row opens detailed information about selected session:

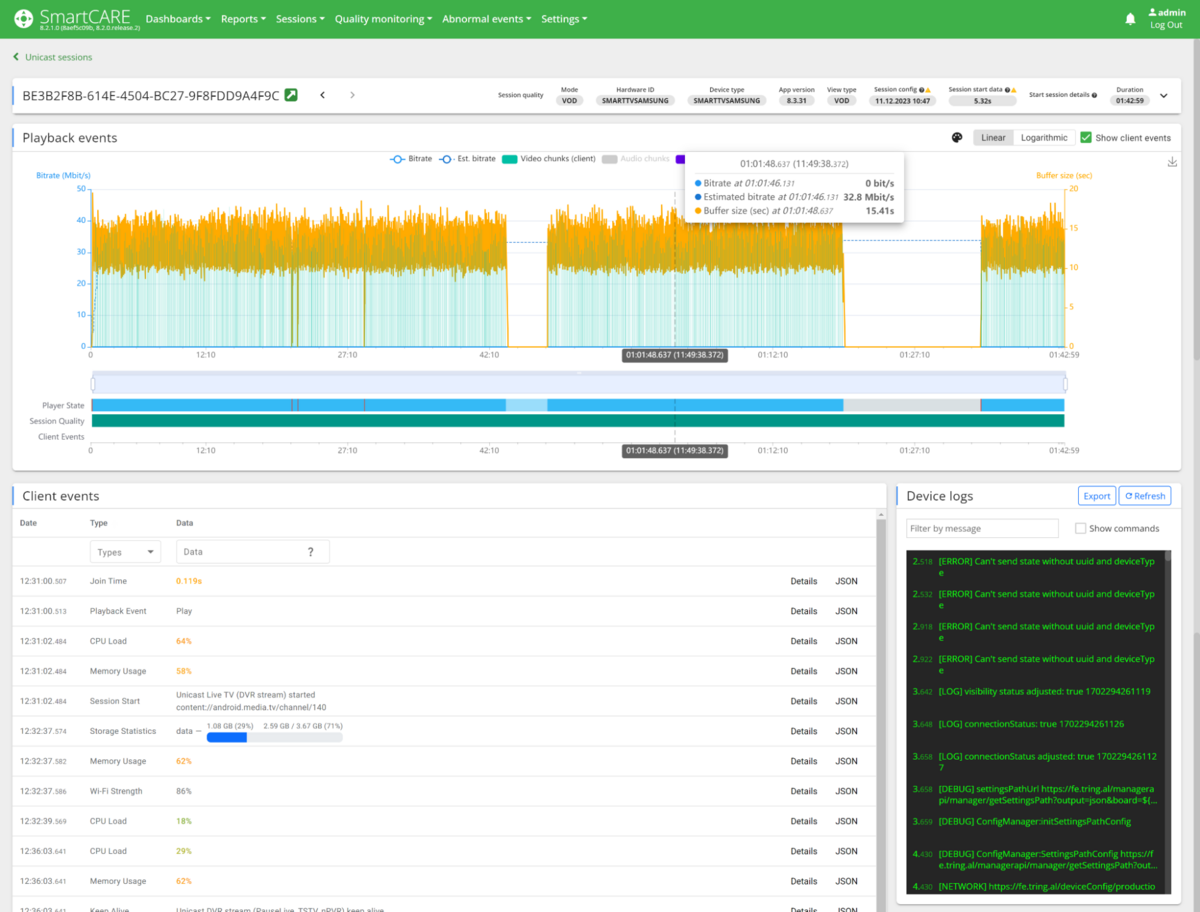

This screen includes several sections that allow you to understand what processes and events occurred on the end-user device during the unicast session:

Session Overview Bar
Playback events
Client events
Device logs

Session Overview Bar

This bar briefly presents the main session parameters: device’s UID, session quality, playback mode, device type, app version, session start time and duration, join time, and some other.

Hovering over some parameters opens pop-up panels with advanced data:

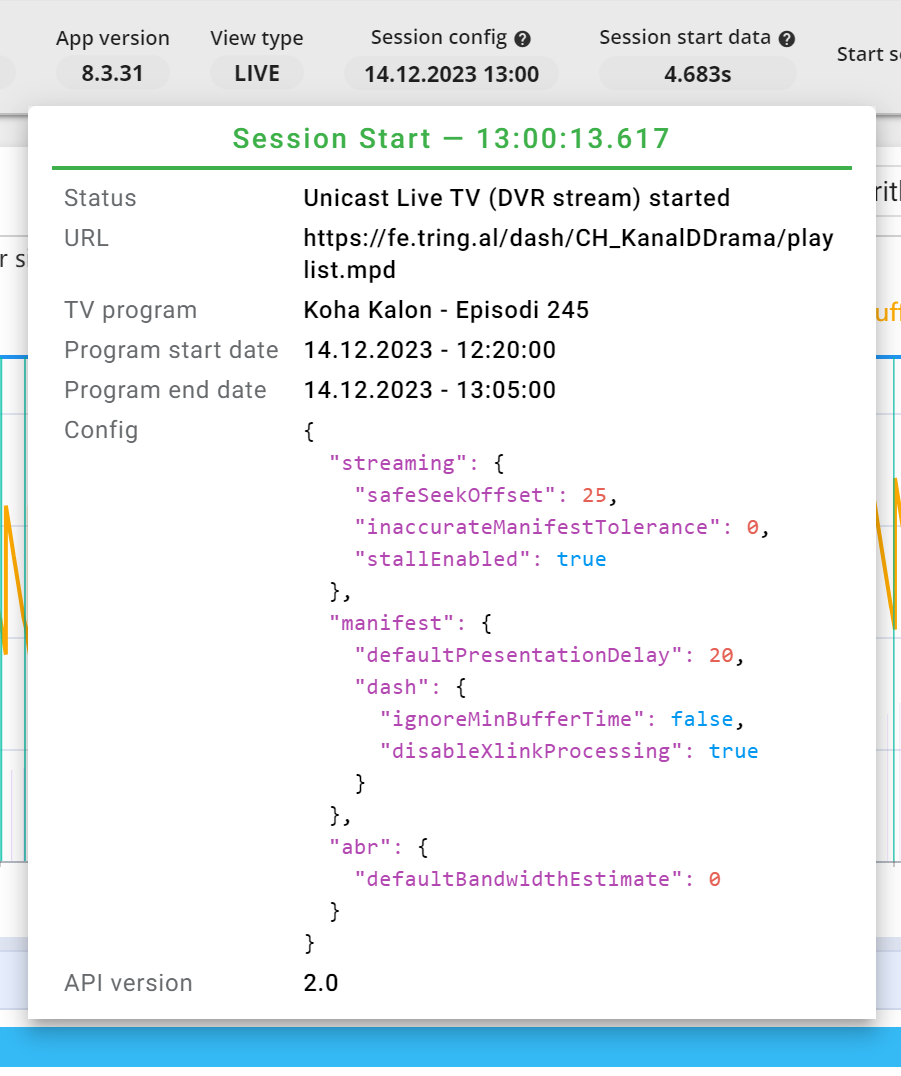

Session config:

Along with session data such as the start time, its status, name and start/end time of the TV program, playlist URL, here you can find information about the configuration of the player and the version of the SmartCARE API used by the client app.

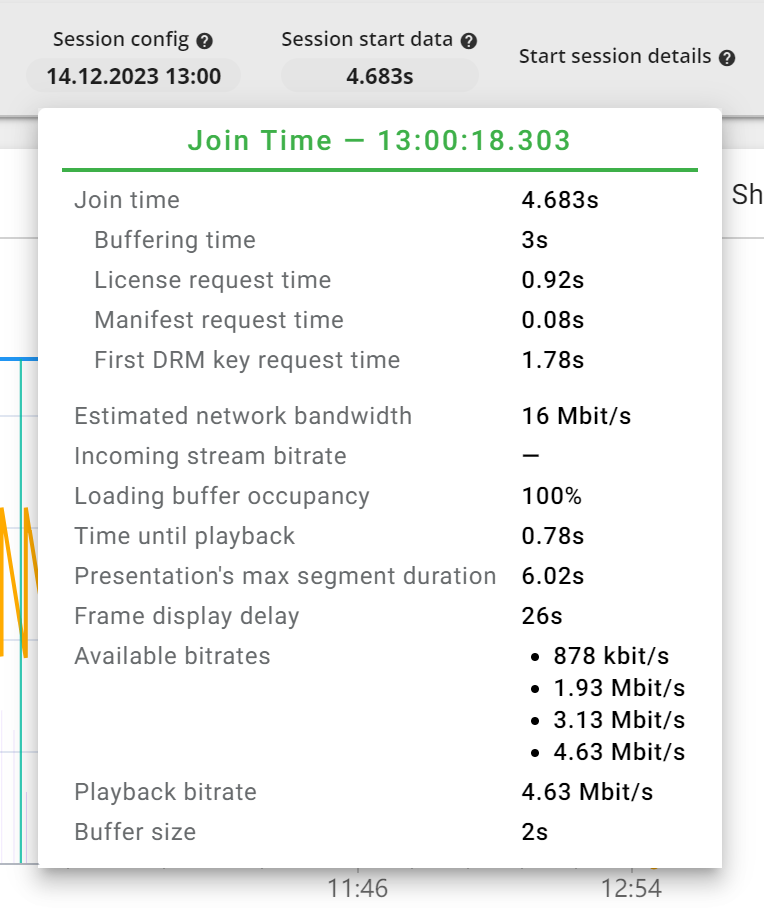

Session start data:

This panel shows all data needed to explore the join time of a session. Here is description of parameters that may require additional clarification:

Join Time: The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback. See more about Join time.
Estimated network bandwidth: The network bandwidth calculated based on size of the media chunks and their loading time.
Time until playback: Time it took for the video element to have enough data to begin playback, in seconds.
Presentation’s max segment duration: The duration of the longest segment described in the first loaded MPEG-DASH playlist at the moment of session start.
Frame display delay: The time between the frame display on the screen and its output to the air by the head-end.
Playback bitrate: The bitrate at which the player starts playback.
Buffer size: The amount of content in the buffer at the start of playback.

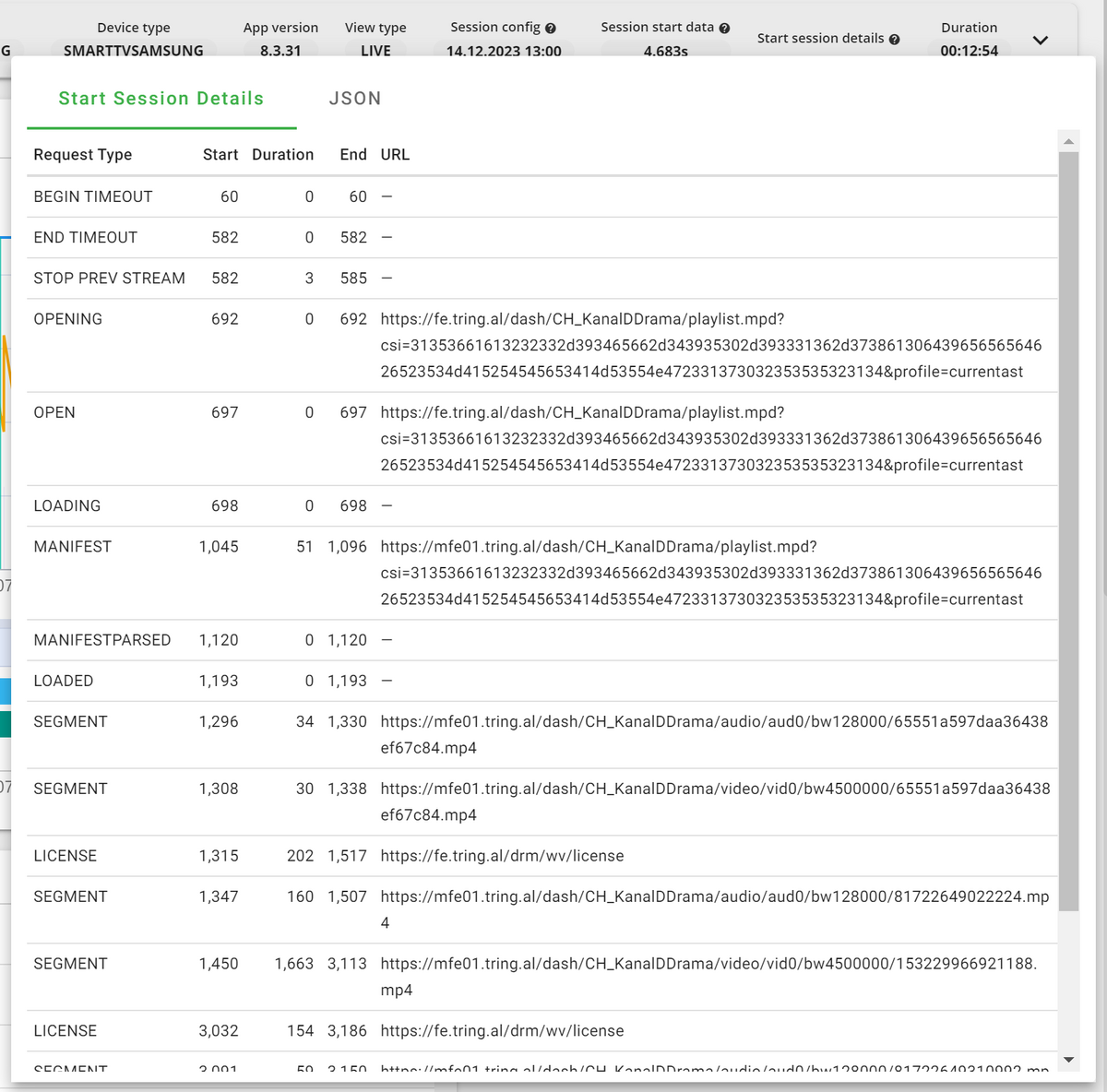

Start session details:

Here you can find the sequence of events accompanying the start of stream playback with timings.

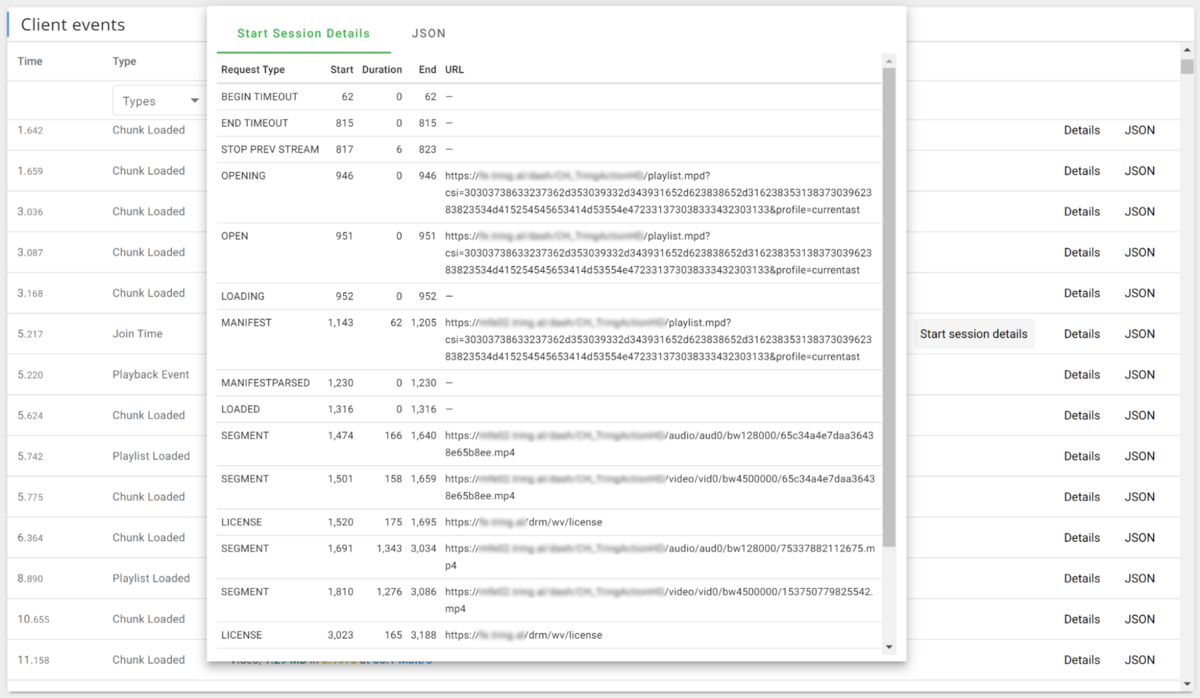

Clicking on the bar opens three sections with details about the session:

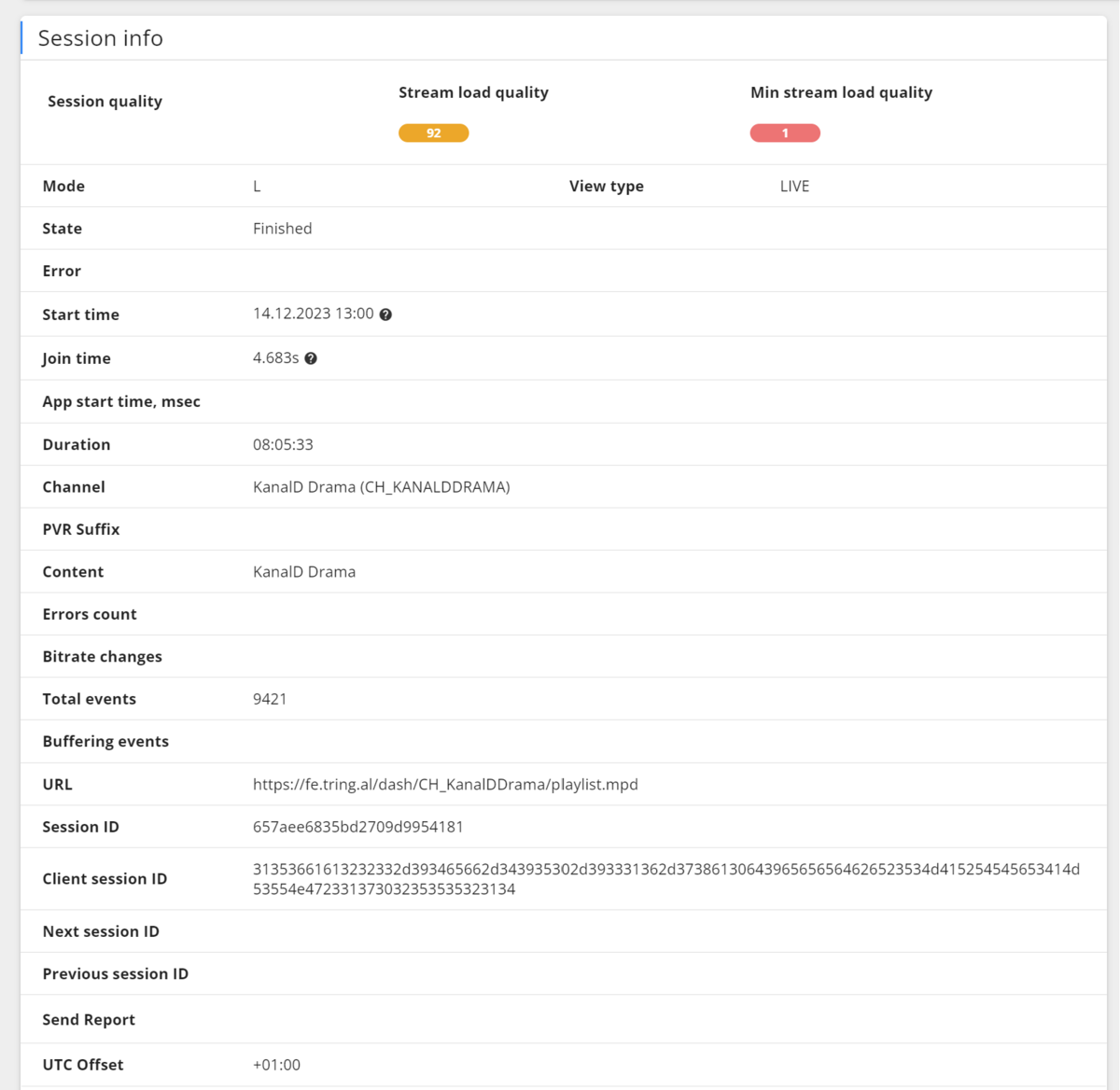

Session info:

The panel shows detailed parameters of the session:

Parameter	Description
Stream load quality	Chunk loading speed (aka Network speed). Values <100 mean that chunks take longer to load than to play.
Min stream load quality	Min chunk loading speed during the session
Mode	Content type: L — live TV stream; DVR — recorded TV stream (Catch-up or PVR); VOD — VoD content, “Video on Demand” STANDBY — the session is in the standby mode; UNKNOWN — the subscriber device is authorized in the system, but the content viewing has not been started yet.
View type	TV stream view mode: LIVE or CATCHUP.
State	Current session status: Active or Finished.
Error	Description of the stream start error (code): 0: Stream Not Found 1: CAS: No Stream Keys 2: Codec Not Supported 3: Too Many Connections 4: Internal Server Error 5: Forbidden 6: Function Not Supported 7: Connection Timeout 8: Connection Terminated 9: Failed To Start 10: Invalid URL 11: Other errors
Start time	Session start time (on the subscriber device, UTC)
Join time	The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback
App start time, msec	Time taken to launch the app: If the app has already been logged in: from downloading data from the backend, to opening the app’s Home screen. If the app has not been logged in, the line displays two periods: 1. From downloading data from the backend to displaying the Authorization screen, 2. From pressing the Login button to opening the app’s Home screen.
Duration	Session duration (s)
Channel	Name and ID of the channel being viewed. The channel name is requested by its ID in the corresponding SmartTUBE SDP dictionary.
PVR Suffix	Information on PVR session from the recording server, in the format: S[record start epoch]_E[record end epoch]_ID[record ID on the recording server’s side]. Example: S1681024680_E1681030800_ID1333385
Content	Program or movie title
Errors count	Number of meta- and media- data transmission errors (httpStatus < 200 or >= 400)
Bitrate changes	Number of bitrate switches (up or down) during the session.
Total events	Total number of events on the subscriber device for a unicast session.
Buffering events	Number of completed stream buffering events on the subscriber device during the session.
URL	URL of the channel/movie playlist
Session ID	MongoDB document ID with session information (used for debugging)
Client session ID	The ID of the client session (CSI) in the SmartCARE system
Next session ID	CSI of the next client session on the current device
Previous session ID	CSI of the previous client session on the current device
Send Report	An indication that the user has sent a report during the session
UTC Offset	Time zone

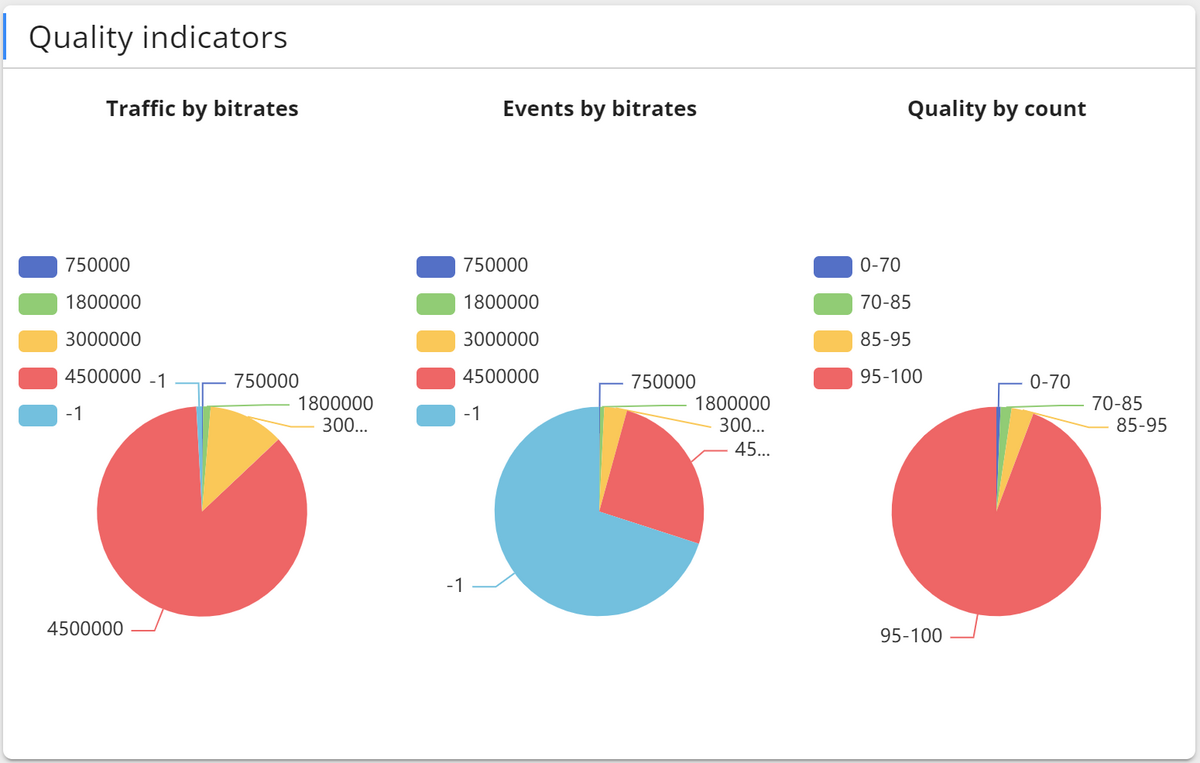

Quality indicators:
These indicators show the ratio of the received data volume and the number of events on the end-user device by bitrate.

Diagram	Description
Numbers around circles	Stream bitrate value (byte/s). The value -1 indicates the impossibility of determining the bitrate (it was not possible to extract the bitrate value from the URL of the content request came to Collector from the streaming server).
Traffic by bitrates	The ratio of the data amount received by the subscriber device at different bitrates
Events by bitrates	The ratio of the number of events generated by the subscriber device at different bitrates
Quality by count	Distribution of session events by quality

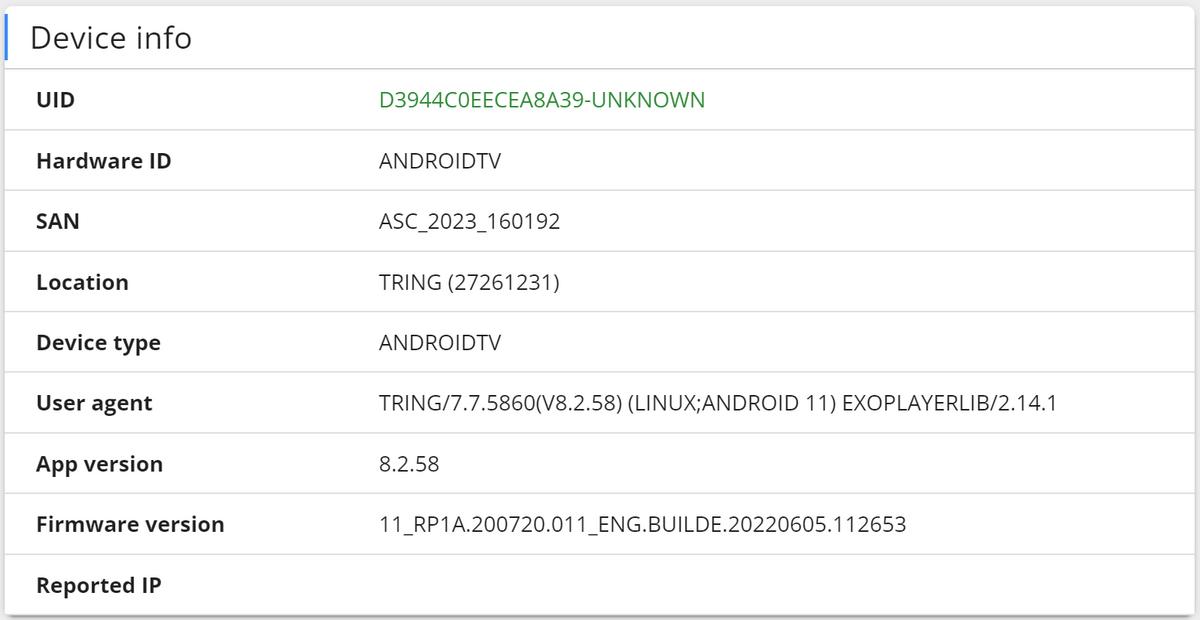

Device info:
This section provides general information about the end-user device.

Parameter	Description
UID	Unique ID of the subscriber device (UID)
Hardware ID	End-user device identifier used for internal API requests and other SmartLabs applications
SAN	Service account identifier unique across the SmartTUBE platform
Location	Location of the subscriber device in the operator network, determined at the moment of authorization.
Device type	Type of the end-user device. See How Device Type is Defined.
User agent	Content of the User-agent header in the HTTP requests of the client application to the streaming server. Note: data is requested from the last stored unicast session.
App version	Client application version of the end-user device in the last verified session
Firmware version	Firmware version installed on the end-user device
Reported IP	IP sent by the end-user device with the KEEP ALIVE event

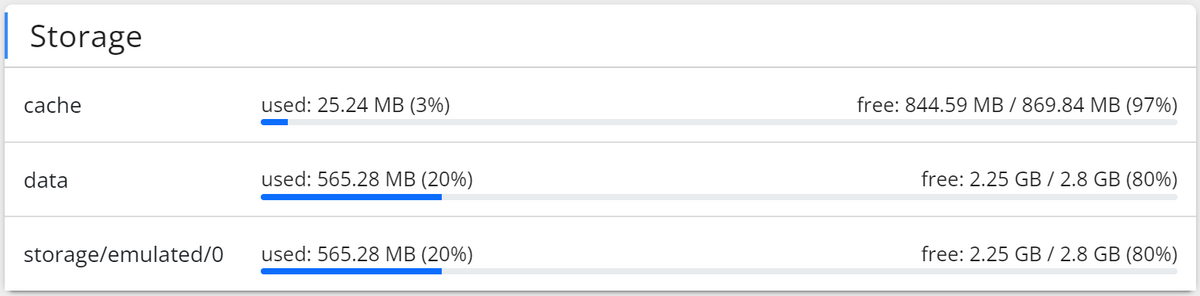

Storage:
This section provides information about total size and amount of free space for critical storage directories on the end-user device:
- cache
- data
- persistent
- sdcard
- storage/emulated/0

This event is sent at intervals specified by parameter storageCheckInterval in the configuration file setup.json of SmartTUBE app.

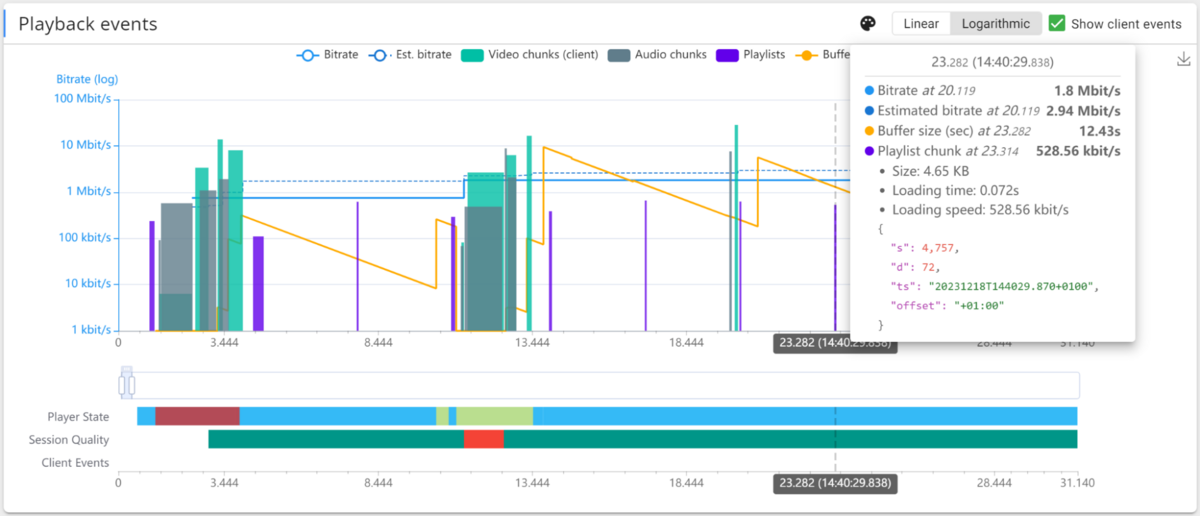

Playback Events Panel

This section allows you to explore the events occurred on the end-user device during the session.

Using the Show client data checkbox you can change the data type for plotting the graph: streaming server log data or data received from end-user devices via SmartCARE End-User Device API. You can check if the device supports the transfer of API data sufficient to plot the graph by hovering over the Session config parameter in the Session Overview Bar and looking at the value of the API version parameter. It should have a value of 2.0 or higher.

This graph can provide you with comprehensive information to find the causes of playback freeze or streaming quality degradation that occurred on the device while watching TV or VoD content. Let’s see how to read this graph and what useful data it provides:

Bitrate: Bitrate of the last loaded chunk. The value is taken from the playlist containing data about this chunk.
Estimated bitrate: Current network bandwidth calculated based on size of the last loaded media chunk and its loading time.
Video/Audio/Playlist chunks: Loading speed of a chunk and duration of its loading. Displayed by column height and width, respectively. In order to evaluate the difference in chunk loading speed, you can change the graph display type between Linear and Logarithmic.
Buffer size: Amount of content in the player buffer.
Player State: Displays the following player states:
- Play, Stop, Pause, Rewind.
- Freeze (pre): Buffering before starting a channel or movie.
- Freeze (wait): Waiting for data by the HTML MediaElement.
- Freeze (buffer): Player buffer has no content sufficient to start the playback.

The events on the Player state bar are drawn in semi-transparent colors. Therefore, if two events overlap, you may see a darker color. For example, two overlapping Freeze (buffer) events produce a dark red color.

Session Quality: Recalculates for every video chunk based on the Algorithm 1.
Client Events: Displays the following events received from the device:
- App Start Duration
- Authentication Attempt
- Chunk Error
- Internet Lost
- Program Change
- Reboot
- Send Report
- Standby
- Storage
- Threshold Memory
- Unknown
- Virtual Memory
- Wi-Fi Strength

By moving your cursor over the graph, you can see that some events contain raw JSON data. Clicking on such an event will display it first in the Client events list below.

Client Events Panel

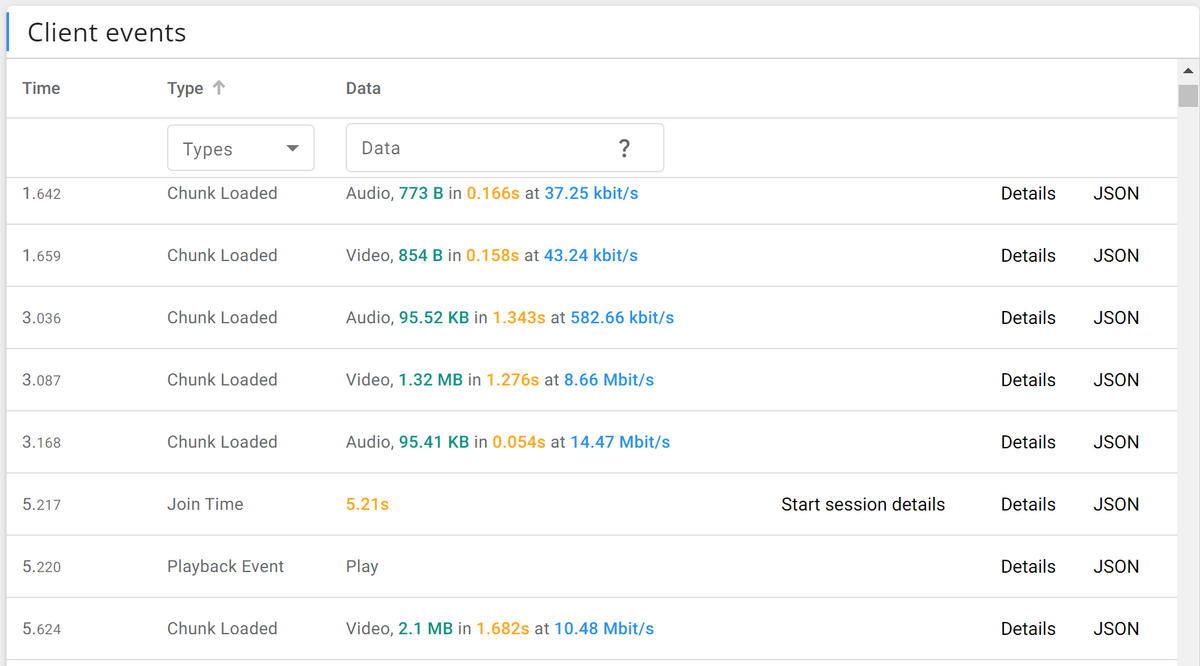

This list displays all events registered within a session. By hovering over the Details and JSON areas, you can get all the data for each event. A description of the raw JSON data for each event is shown below:

App Start

The application startup (load) duration.

API Request Parameter	Description	Player
API Request Parameter	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=APP_START	Event type
values	Application startup (load) duration, in ms.

Auth Attempt

Attempt to authorize the end-user device on the SmartTUBE server. The event determined by the SmartTUBE End-User Device API request /authorize? to the SmartTUBE server when a device is switching on. An event counts for any result.

Features:

SmartTUBE v4. If an Internet connection is established, the authorization request is sent immediately; if not, after the connection is established.
SmartTUBE v5 and later. The following condition is added to the logic described above: authorization is performed by a token that has its own expiration period. When it ends (backend setting), the reauthorization is performed.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=AUTH	String	Event type	+	+	+	+	+
san	String	Service account ID on the SmartTUBE SDP platform	+	+	+	+	+
values	String	The result of the device authorization on the SmartTUBE server. Allowable values: SUCCESS, ERROR.	+	+	+	+	+
ver	String	Client application / firmware version	+	+	+	+	+
fver	String	Firmware version (for STB only)				N/A	+
locationId	Integer	ID of the client device location (region ID in the SmartTUBE DB)	+	+	+	+	+
dtId	Integer	ID of the device type (in the SmartTUBE DB)	+	+	+	+	+
reason	Integer	Authorization type. Allowable values: 0 – PRIMARY, request for device authorization at client application startup; 1 – EXPIRED, request for device authorization after the current authorization expires; 2 – ERROR, request for device authorization when the error screen is displayed; 3 – AUTHORIZE, request for device authorization on the login screen; 4 – BLOCKED, request for device authorization when an account is blocked (the request is sent by device to the SmartTUBE server to clarify the status of the account)
ip	string	IP address from which authorization was performed

Bitrate Changed

Switching to a stream (variant) with a different bitrate.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=BITRATE_CHANGE	String	Event type
values	Integer	New bitrate of content viewing, bit/s

Buffering

For SmartTUBE apps for large-screen devices (JUNG-based apps) from version 8.2 onwards, this event has been replaced by the e=FREEZE event.

Starting or completion of stream buffering.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=BUF_UNDERRUNS	String	Event type
values	Integer	Duration of stream buffering, msec. A value of 0 indicates the start of buffering.

Buffer Size

Information on the load buffer state. This event is sent at intervals specified by parameters bufsizeCheckInterval and bufsizePercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description
API Request Parameter	Type	Description	e=BUF_SIZE	String	Event type
duration	Float	Duration of content available in buffer, in sec.
vid.usage	Integer	Percentage of video injector buffer utilization
aud.usage	Integer	Percentage of audio injector buffer utilization
sub.usage	Integer	Percentage of subtitle injector buffer utilization
inj.usage	Integer	Percentage of internal injector buffer utilization

Chunk Error

An event that reports an error when loading a chunk.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=CHUNK_ERROR	String	Event type	+
error	String	Error code	+
msg	String	Error message	+
url	String	Chunk URL	+

Chunk Loaded

An event that reports the completion of a chunk load.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=CHUNK_LOADED	String	Event type	+	+	+
d	Integer	Chunk loading duration, ms.	+	+	+
s	Integer	Chunk size, bytes.	+	+	+
bs	Integer	Buffer size at the moment of chunk loading started, ms.	+	+	+
br	Integer	Chunk bitrate, bit/s (optional). The value is taken from the playlist.	+	+	+
av	String	Chunk type: audio, video, sub, other.	+	+	+
ebr	Integer	Current estimated network bandwidth, bit/s.	+	+	+
url	String	Chunk URL (optional). The value is passed if only the sendChunkUrl flag is set to true in the configuration file setup.json of the SmartTUBE app.	+	+	+
bs_stat	Array	Buffer statistics for av=video, in a format: [ { ts: <event occurrence timestamp (UTC without TZ)>, bs: <Buffer size, in msec> }, { ts: .., bs: .. }, … ]	+	+	+

CPU Load

The abnormal surge of the end-user device’s CPU usage.

This event is sent at intervals specified by parameters cpuCheckInterval and cpuPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=CPU_LOAD	String	Event type
values	Integer	CPU usage value (%)

Freeze

This event allows you to distinguish between three states in which streaming delay or image freezing occur:

Pre-buffering — buffering before starting a channel or movie;
Waiting for data by the HTMLMediaElement
Buffer underrun — the moment the buffer is zeroed, i.e. there is no content left in the buffer.

API parameter	Type	Description	Player
API parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=FREEZE	string	Event type
type	string	State in which streaming delay or image freezing occured: pre — buffering before starting a channel or movie; wait — waiting for data by the HTML MediaElement buffer — the moment the buffer is zeroed, i.e. there is no content left in the buffer.
d	Integer	Duration of a freeze, in ms.
bs	Integer	Buffer size at the moment of event occurrence, in ms.

Internet Lost

Internet connection loss. The connection is checked every minute by the ping [SmartTUBE server host address] command.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=INTERNET_LOST	String	Event type
values	Integer	Duration of the Internet connection absence, msec. The data is sent by the device after the connection on the current network interface appears.

Join Time

The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=JOIN_TIME	String	Event type	+	+	+	+	+
values	Integer	The time between a subscriber pressing a button on the remote control (not releasing the button) and the start of playback, in ms.	+	+	+	+	+
Parameters that directly affect the start time of the stream
mnft	Double	Amount of time it took to download and parse the manifest, in seconds.	+	+	+	Roadmap	N/A
drmt	Double	Amount of time it took to download the first DRM key, in seconds.	+	N/A	Roadmap	N/A	+
lct	Double	Time spent on license requests during this session, in seconds.	+	N/A	Roadmap	N/A	+
ldl	Double	Time it took for the video element to have enough data to begin playback, in seconds. This is measured from the time the player’s load() function is called to the time the ‘loadeddata’ event is fired by the media element.	+	+	N/A	N/A	+
Reference parameters
dt	String	Device type	+	+	+	+	+
bfu	Integer	Loading buffer occupancy (%). The ratio of the time of viewing the content by the subscriber to the time of its buffering. For the JOIN_TIME event, this parameter should be equal to 100%, since playback has not started yet.	+	+	+	N/A	Roadmap
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate, in bit/sec.	–	–	–	–	–
msd	Double	Presentation’s max segment duration: The duration of the longest segment described in the first loaded MPEG-DASH playlist at the moment of session start.	+	+	N/A	N/A	+
ll	Double	Time between the frame display on the screen and its output to the air by the head-end, in seconds.	+	+	N/A	N/A	Roadmap
bft	Double	Total time spent in a buffering state, in seconds.	+	+	+	N/A	+
ebw	Double	Current estimated network bandwidth, in bit/sec.	+	+	+	N/A	+
pdc	Integer	Number of frames played	+	+	+	N/A	+
pdec	Integer	Number of frames with decoding errors	+ (non-zero value)	+	+	N/A	Roadmap
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.
abr	Array of integers	Available bitrates, in bit/sec.
bdr	Integer	Buffer size, in sec.
btr	Integer	Average bitrate calculated by the video PES packet, in bit/sec.
dbr	Integer	Downloading bitrate, in bit/sec.
dec	Integer	Number of frames with errors	+ (non-zero value)	+	+	N/A	Roadmap
ufc	Integer	Number of loading buffer underrun events (client application STVID_DATA_UNDERFLOW_EVT event). For the JOIN_TIME event, this parameter should be equal to 1.	+	+	+	N/A	+
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000.
url	String	URL of the content playlist/manifest	+	+	+	+	+

Keep Alive

Message on connection activity maintaining and stream playback status sent by the end-user device to the streaming server during stream playback (usually every 5 minutes). This event is sent at intervals specified by parameter keepAliveInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=KEEP_ALIVE	String	Event type	+	+	+	+	+	+
mem	Integer	Client device memory usage (%)	Chrome	+	N/A	+	N/A	Roadmap
cpu	Integer	Client device CPU usage (%)	N/A	+	N/A	+	N/A	Roadmap

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
ste	String	Result of starting the stream / keep alive status: LSA — multicast Live TV stream keep alive; DVRKA — unicast DVR stream (PauseLive, TSTV, nPVR) keep alive; VODKA — VoD stream keep alive.	+	+	+	+	+
btr	Integer	Average bitrate calculated by the video PES packet, in bit/sec.	N/A	N/A	N/A	N/A	+
bfu	Integer	Loading buffer occupancy (%). The ratio of the time of viewing the content by the subscriber to the time of its buffering.	+	+	+	N/A	Roadmap
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate, in bit/sec.	–	–	–	–	–
mnft	Double	Amount of time it took to download and parse the manifest, in seconds.	+	+	Roadmap	N/A	+
drmt	Double	Amount of time it took to download the first DRM key, in seconds.	+	N/A	Roadmap	N/A	+
msd	Double	Presentation’s max segment duration, in seconds.	+	+	N/A	N/A	+
ll	Double	Time between the frame display on the screen and its output to the air by the head-end, in seconds.	+	+	N/A	N/A	Roadmap
ebw	Integer	Current estimated network bandwidth, in bit/sec.	+	+	+	N/A	+
lct	Double	Time spent on license requests during this session, in seconds.	+	N/A	Roadmap	N/A	+
ldl	Double	Time it took for the video element to have enough data to begin playback, in seconds. This is measured from the time the player’s load() function is called to the time the ‘loadeddata’ event is fired by the media element.	+	+	N/A	N/A	+
bft	Double	Total time spent in a buffering state, in seconds.	+	+	+	N/A	+
pdc	Integer	Number of frames played	+	+	+	N/A	+
dec	Integer	Number of frames with errors	+ (non-zero value)	+	+	N/A	Roadmap
pdec	Integer	Number of frames with decoding errors	+ (non-zero value)	N/A	+	N/A	Roadmap
ufc	Integer	Number of loading buffer underrun events (client application STVID_DATA_UNDERFLOW_EVT event)	+	+	+	N/A	+
pgmajfault	Integer	Number of memory page access errors. Note: this parameter is also sent by the device along with the VIRTUAL_MEMORY event (with the values parameter).	N/A	N/A	N/A	N/A	Roadmap
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000.	N/A	N/A	+	N/A	+
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.
dbr	Integer	Downloading bitrate, in bit/sec.
abr	Array of integers	Available bitrates, in bit/sec.
bdr	Integer	Buffer duration, in bit/sec.

Memory Usage

The abnormal surge of the subscriber device memory usage.

This event is sent at intervals specified by parameters memCheckInterval and memPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=MEMORY	String	Event type
values	Integer	Amount of RAM used (%)

Playlist Loaded

An event that reports the completion of a playlist load.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=PLAYLIST_LOADED	String	Event type	+		+	+
d	Integer	Playlist loading duration, ms.	+
s	Integer	Playlist size, bytes.	+
url	String	Playlist URL (optional). The value is passed if only the sendPlaylistUrl flag is set to true in the configuration file setup.json of the SmartTUBE app.	+

Playback Event

Playback events (play, stop, pause or rewind).

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=PLAYER_STATUS	String	Event type	+	+	+	+	+
values	String	Type of signal to the client application player. Acceptable values: play, stop, pause, rewind.	+	+	+	+	+
date	Unixtime	Rewind start time.	+	+	+	+	+
diff	Integer	Rewind duration, in sec.	+	+	+	+	+
direction	String	Direction of playback. Acceptable values: fwd (forward), bwd (backward)	+	+	+	N/A	+

Program Change

TV program change on the channel being viewed.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=PROGRAM_CHANGED	String	Event type	+	+	+	+	+
idc	Integer	Channel ID or content ID (movie name, local file name, YouTUBE content ID, etc.)	+	+	+	+	+
idp	Integer	TV program ID (if the Live TV or DVR stream is played)	+	+	+	+	+
idpStart	Unixtime	Program start date (timestamp)	+	+	+	N/A	+
idpEnd	Unixtime	Program end date (timestamp)	+	+	+	N/A	+

Reboot

STB reboot at low free memory level and high CPU utilization:

Memory Critical Level (default threshold — 75%) exceeded — the STB reboots in the standby mode;
Memory Blocker Level (default threshold — 80%) exceeded — in standby mode, the STB reboots immediately; in other mode, the STB reboots immediately when the CPU utilization level exceeds CPU Critical Level (default threshold — 80%).

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=REBOOT	String	Event type
values	String	STB reboot at low free memory level and high CPU utilization, see description above. Allowable values: ByLowMemoryWatchdog — reboot when the Memory Critical Level is exceeded; ByOutOfMemoryWatchdog — reboot when the Memory Blocker Level is exceeded.

Run Test

This event notifies about the execution of test scenarios on the end-user device. For more details, see here.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=RUN_TEST	String	Event type	+
value	String	Test execution state: start — start of the test; end — end of test.	+
name	String	Name of a file with the test script	+
testid	String	ID of the test execution. Represents the start or end time of the test, in ms. The ISO 8601 format with time zone is used (e.g. 20230711T154956.201%2B0300). IMPORTANT: testid must be passed with each event triggered by the test script.	+

Send Report

The user sent the device log by pressing the Send Report button in the client application. Typically, it is located in the Home screen > Settings > System > Support > Support menu.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=SEND_REPORT	String	Event type
value	Integer	The reason the user sent the report, which he/she selected in the dialog box. Allowable values: 0 — problems with video 1 — problems with audio 2 — frequent buffering 3 — slow application performance 4 — other problems
valueString	String	The reason the user sent the report, which he/she selected in the dialog box. Allowable values: Video+quality Audio+quality Frequent+bufferization Slow+interface Other

Session Start

Streaming enabling and start of streaming or error.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=SESSION_START	String	Event type	+	+	+	+	+
ste	String	Result of starting the stream / keep alive status: LS — multicast Live TV stream started; LE — multicast Live TV stream failed to start; VODS — VoD stream started; VODE — VoD stream failed to start. DVRS — unicast DVR stream (PauseLive, TSTV, nPVR) started; DVRE — unicast DVR stream (PauseLive, TSTV, nPVR) failed to start; DVRLS — unicast Live TV (DVR stream) started; DVRLE — unicast Live TV (DVR stream) failed to start.	+	+	+	+	+
error	String	Description of the stream start error (code): 0: Stream Not Found 1: CAS: No Stream Keys 2: Codec Not Supported 3: Too Many Connections 4: Internal Server Error 5: Forbidden 6: Function Not Supported 7: Connection Timeout 8: Connection Terminated 9: Failed To Start 10: Invalid URL 11: Other errors
dt	String	Device type	+	+	+	+	+
ver	String	Client application / firmware version	+	+	+	+	+
idc	String	Channel ID or content ID (movie name, local file name, YouTUBE content ID, etc.)	+	+	+	+	+
url	String	URL of the content playlist/manifest	+	+	+	+	+
idp	Integer	TV program ID (if the Live TV or DVR stream is played)	+	+	+	+	+
btr	Integer	Average bitrate calculated by the video PES packet	N/A	N/A	N/A	N/A	+
pbr	Integer	The bandwidth required for the current streams (total, in bit/sec). It takes into account the playback rate.	+	+	+	+	+
dbr	Integer	Download bitrate	N/A	+	+	+	+
abr	Integer	Available bitrates	+	+	+	+	+
bdr	Integer	Buffer size (sec)	+	+	+	N/A	?
idpStart	Unixtime	Program start date (timestamp)	+	+	+	N/A	+
idpEnd	Unixtime	Program end date (timestamp)	+	+	+	N/A	+
fr	Integer	Number of frames (not fields) per second multiplied by 1000. For example, 24 fps is recorded as 24000	N/A	N/A	+	N/A	+
ibr	Integer	NOT USED: Not sent by devices. Incoming stream bitrate	–	–	–	–	–
bfu	Integer	Loading buffer occupancy (%)
cfg	String	Player configuration parameters	+

			Platform
			Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
mem	Integer	Memory usage at the time of session generation (%)	Chrome	+	N/A	+	iOS	Roadmap
cpu	Integer	CPU usage at the time of session generation (%)	N/A	+	N/A	+	N/A	Roadmap
wlan	Integer	Wi-Fi signal level at the time of session generation	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
rid	String	MAC address of the STB or UID of the Android device	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
ip	String	IP address of the client device	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
api	String	The version of the API used by the client application. Depending on the value, SmartCARE determines whether the session should be plotted on the graph based on client or server data.	+	+	+

Session End

Session termination with the beginning of a new one. This is not an event of the client application, as it is generated by the Collector by changing the csi. See the “Session Concept” section.

Standby

The session goes into standby mode. This mode is activated when there is no action from the STB remote control for a certain time, as well as when the STB is turned off using the “Standby” button.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=STANDBY	String	Event type
values	String	Standby mode. Allowable values: OFF — the device has switched to normal mode; ON — the device has switched to standby mode.

Storage

Total size and amount of free space for critical storage directories:

cache
data
persistent
sdcard
storage/emulated/0

This event is sent at intervals specified by parameter storageCheckInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=STORAGE_STATS	String	Event type				+
cache.bytes_free	Integer	Free space available in the cache directory, in bytes.
cache.bytes_total	Integer	Total space of the cache directory, in bytes.
persistent.bytes_free	Integer	Free space available in the persistent directory, in bytes.
persistent.bytes_total	Integer	Total space of the persistent directory, in bytes.
sdcard.bytes_free	Integer	Free space available in the sdcard directory, in bytes.
sdcard.bytes_total	Integer	Total space of the sdcard directory, in bytes.
storage%2Femulated%2F0.bytes_free	Integer	Free space available in the storage/emulated/0 directory, in bytes.
storage%2Femulated%2F0	Integer	Total space of the storage/emulated/0 directory, in bytes.
data.bytes_free	Integer	Free space available in the data directory, in bytes.	Roadmap	Roadmap	Roadmap	Roadmap	N/A	Roadmap
data.bytes_total	Integer	Total space of the data directory, in bytes.	N/A	N/A	N/A	+	N/A	Roadmap

Threshold Memory

The memory and CPU utilization exceeded one of the following thresholds on the STB:

Memory Normal Level (default threshold – 60%)
Memory Critical Level (default threshold – 75%)
Memory Blocker Level (default threshold – 80%)
CPU Critical Level (default threshold – 80%)

The default STB behavior when these thresholds are exceeded is as follows:

Memory Normal Level exceeded — the CPU monitoring timer or reboot timer resets to 60 and 5 seconds respectively.
Memory Critical Level exceeded — in standby mode, the reboot timer starts; in the other mode, the reboot timer starts when the STB goes into standby mode.
Memory Blocker Level exceeded — in standby mode, the STB reboots immediately; in other mode, the STB reboots immediately when the CPU utilization level exceeds CPU Critical Level.

This event is sent at intervals specified by parameter memThresholdCheckInterval in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Platform
API Request Parameter	Type	Description	Web	Samsung Smart TV	LG Smart TV	Android TV	iOS	Android
e=MEMORY_THRESHOLD	String	Event type
values	String	The memory and CPU utilization exceeded one of the thresholds described above (for STBs only). Allowable values: NormalMemoryWatchdogThreshold — Memory Normal Level exceeded LowMemoryWatchdogThreshold — Memory Critical Level exceeded; OutOfMemoryWatchdogThreshold — Memory Blocker Level exceeded

Unknown Event

An unknown event for the Collector. It may occur when a new monitored event appears in the updated version of the client application and the corresponding processing in the current Collector version is not available.

Virtual Memory

Spike in the number of RAM page access errors (with 2-fold acceleration) for the period between checks (for 1 minute by default). When this event occurs, the device often slows down or freezes.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=VIRTUAL_MEMORY	String	Event type
values	Integer	Number of memory page access errors. Note: this parameter is also sent by the device along with the KEEP_ALIVE event (with the pgmajfault parameter).

Wi-Fi Strength

The abnormal surge of the Wi-Fi signal level on the subscriber device (only for STB with Wi-Fi module).

This event is sent at intervals specified by parameters wifiCheckInterval and wifiPercentsDiff in the configuration file setup.json of SmartTUBE app.

API Request Parameter	Type	Description	Player
API Request Parameter	Type	Description	Shaka	HLSJS	Cobalt + ExoPlayer	iOS	Android
e=WIFI_STRENGTH	String	Event type
values	Integer	Wi-Fi signal level change (%)

Session Start Details

The Join Time event displayed in the Client Events panel provides you with additional information about events that were executed by the player when the stream was started. When you move the cursor over the Session Start Details field in its row, the following window pops up:

This window provides information about the following events that were executed by the player when the stream was started:

All players:

OPENING: The player executed the open command and started preparing the data for opening.
OPEN: The stream opening function is called.

HLSJS Player:

MANIFEST_LOADED: The manifest is loaded.
FRAG_LOADED: The chunk is loaded.
FRAG_BUFFERED: The chunk is loaded to the buffer.
KEY_LOADING: The encryption key is being loaded.
KEY_LOADED: The encryption key is loaded.
FRAG_PARSED: The chunk is parsed.
INIT_PTS_FOUND: The initial PTS (The timestamp at which the sample will be presented) is found.
AUDIO_TRACK_LOADING: The audio tracks is loaded.
CANPLAY: Everything is ready to start playback.
TIMEUPDATE: The time is updated.
WAITING: Waiting for data.

Shaka Player:

LOADING: The playlist and the first chunks have started downloading.
MANIFESTPARSED: The manifest is parsed.
LOADEDDATA: Loading a frame at the current media playback position is complete (often this is the first frame).
TIMEUPDATE: The time is updated.
STOP PREV STREAM: The previous stream is stopped using the STOP command.
BEGIN TIMEOUT: Start of the timeout used when channel zapping.
END TIMEOUT: End of the timeout used when channel zapping; Start of channel playback.

Delays between consecutive events can be caused by internal processes of the player UI, as well as network delays.

Device Logs Panel

This panel displays logs of the Android OS logs on SmartLabs AOSP STBs with firmware sml-android-11.0.0_r4, sml-android-9.0.0_r11 and later and SmartTUBE Apps for large-screen Devices 8.2.5 (aka JUNG) and later.
