What is SmartCARE
SmartLabs SmartCARE — a software solution for monitoring the quality of services in IPTV and OTT networks.
The SmartCARE solution uses a client-server architecture that includes a SmartCARE server and software components embedded in the operator’s IPTV or OTT platform.
SmartCARE clients are various equipment and systems involved in the IPTV/OTT services implementation. Based on data from clients, the SmartCARE server allows operator’s duty staff and technical support staff to identify in real-time problems on the IPTV/OTT platform side, which can lead to complete loss, scattering, jittering or freezing of the image. In such cases, SmartCARE instantly displays all the necessary information to quickly find the source of problems.
SmartCARE evaluates the quality of services according to the following parameters:
Common streaming health parameters
- cumulative video state index
- cumulative streaming quality index
- streaming bitrate and bitrate switching rate
- streaming sessions count
- streaming and decoding errors
- cumulative resource state index
- cumulative end-user device state index
End-user device health parameters
- device hardware state
- device connection state
- device software parameters
- device software crashes
Operator’s platform health parameters
- network parameters: bitrate, network interface utilization
- hardware parameters
- streaming parameters: bitrate, session parameters, streaming errors
- recording and storing parameters
SmartCARE Key Features
- Working in IPTV / OTT networks
- Supporting most of customer devices
- SmartLabs infrastructure support, integration with third-party infrastructure
- Aggregate data analysis of client applications and server-side
- OTT broadcast quality monitoring
- Real-time monitoring, update every minute
- The choice of aggregation interval data
- Storage and analysis of event history and service quality data
- Comprehensive set of key metrics for assessing broadcast quality
- Analytics, monitoring and reporting tools
- Analysis of events for a specific subscriber
- Convenient graphical interface
- Timely notification on changes or problems in the system
- Export data to CSV and PDF as diagrams and tables
- Scheduled reporting
- Role model of system users
SmartCARE User Interface

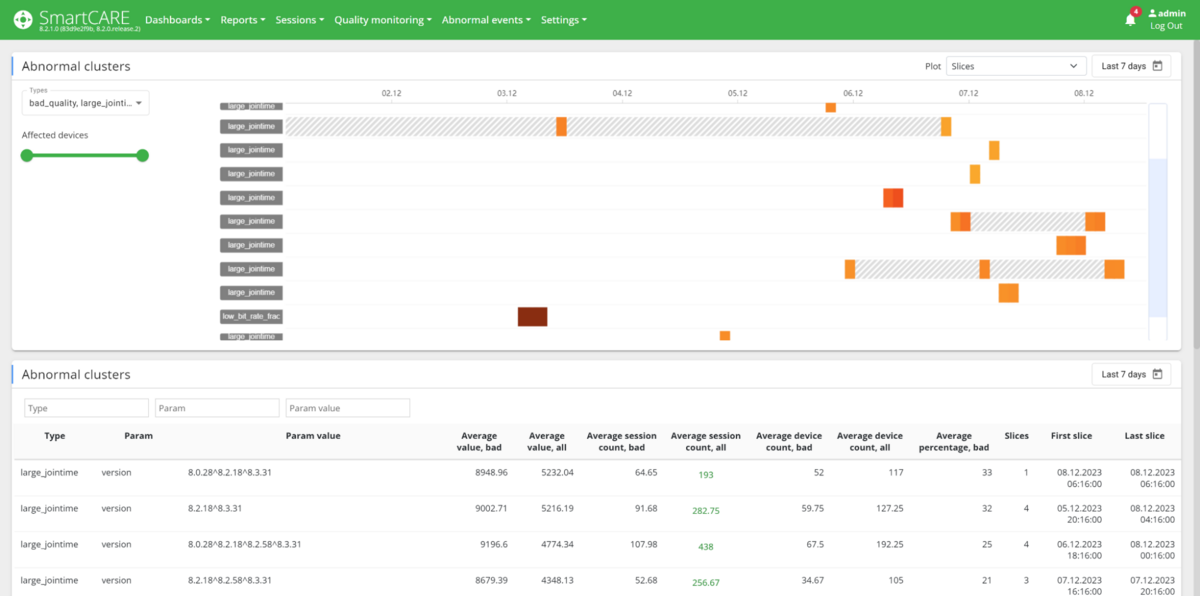

SmartCARE user interface is a web panel allowing to view and analyze detailed statistics on subscribers, TV channels and various platform nodes. Users can create individual on-line monitoring panels (Dashboards), move the necessary graphs onto them and monitor the most critical system parameters in real time. Accumulated statistics and diagrams can be exported in CSV, PNG and PDF formats.

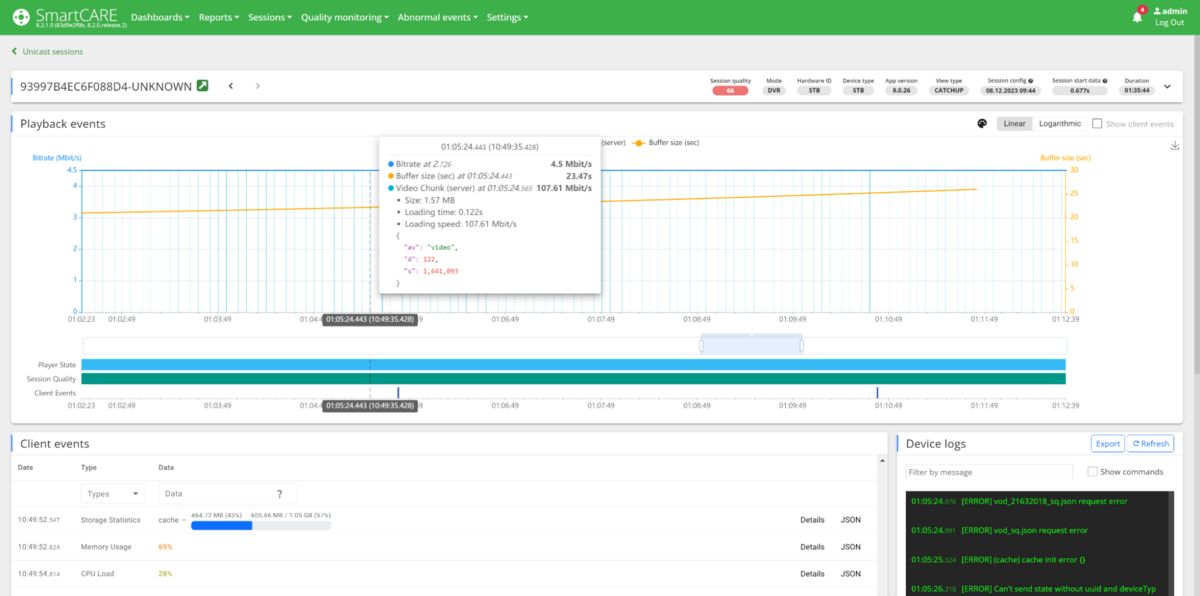

View detailed statistics by subscribers detailed up to the end user or group of users for any time period — from one minute to several months.
Receive predictive information about problems reducing the service quality, with the information on problem scale and consequences.

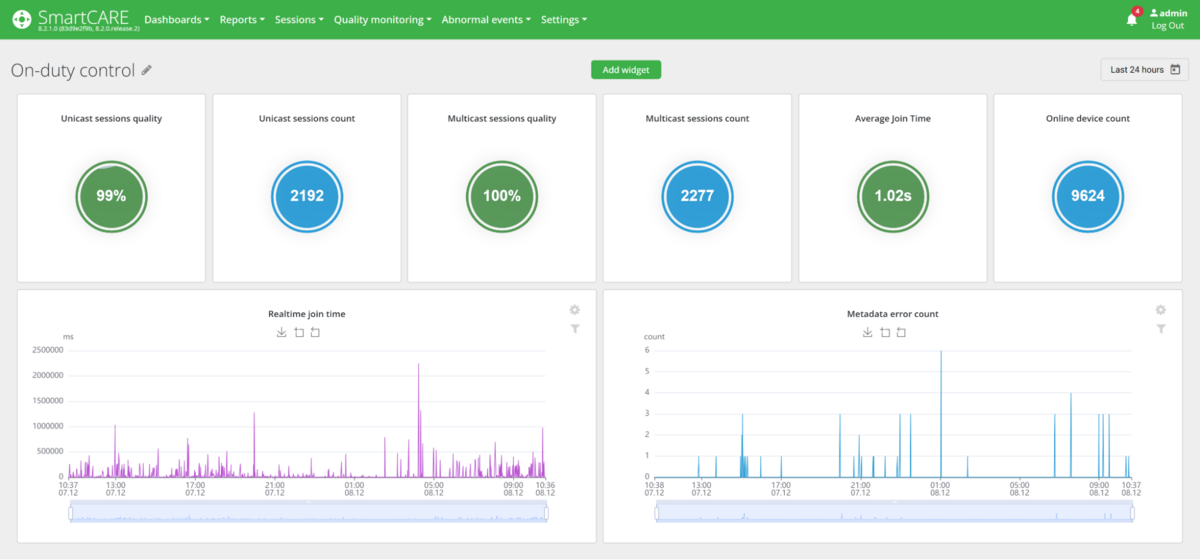

Set up a personal dashboard for monitoring service quality — collect the necessary set of diagrams and reports on a single page and preserve the established filters and dates.
